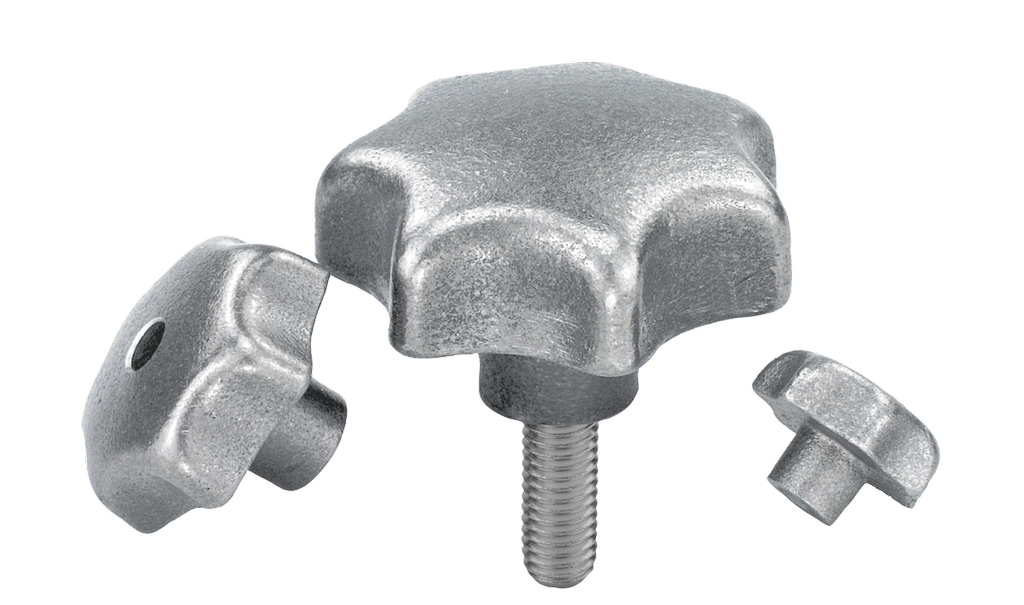

K0151 Inch - Star Knobs In Cast Iron Four Hole Types

K0151 Inch - Star Knobs In Cast Iron Four Hole Types

Material:
gray cast iron GJL 200.

Version:
Vibratory ground.
Bright.

Note:
For the inch series, dimension D is in inches, all other dimensions are in mm.

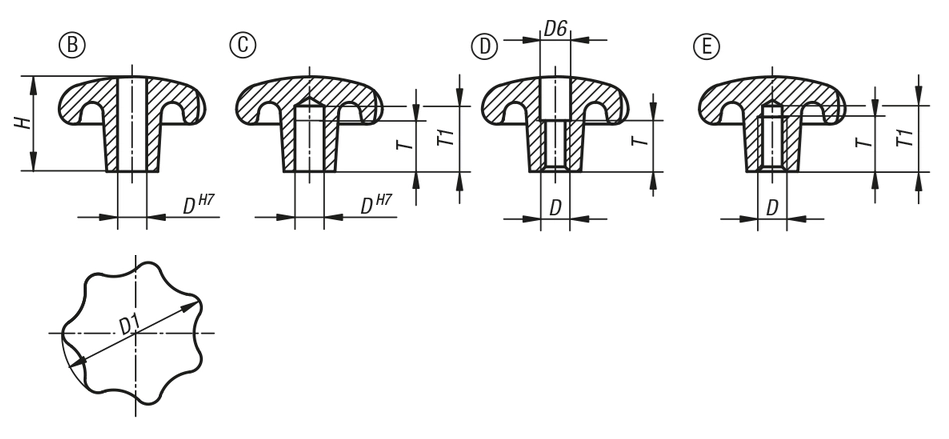

Drawing reference:
Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole

Star Grip. Blank. 63mm Grip Diameter. Cast Iron.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	D	D1	D2	D6	H	H3	Male/Female	Style	Surface Body finish	T	T1	Price (Exc. Tax)	Stock
Filters
K0151.3CM View product	0.25	32	12	--	20	10	Female	C	tumbled	12	15	£3.66	0
K0151.2CM View product	0.25	32	12	--	20	10	Female	B	tumbled	--	--	£3.66	0
K0151.3CN View product	0.312	40	14	--	25	13	Female	C	tumbled	15	18	£3.87	0
K0151.2CN View product	0.312	40	14	--	25	13	Female	B	tumbled	--	--	£3.87	0
K0151.3CO View product	0.375	50	18	--	32	17	Female	C	tumbled	18	21	£5.48	0
K0151.2CO View product	0.375	50	18	--	32	17	Female	B	tumbled	--	--	£5.48	0
K0151.3CP View product	0.5	63	20	--	40	21	Female	C	tumbled	22	25	£7.99	0
K0151.2CP View product	0.5	63	20	--	40	21	Female	B	tumbled	--	--	£7.99	0
K0151.3CQ View product	0.625	80	25	--	50	25	Female	C	tumbled	28	32	£14.36	0
K0151.2CQ View product	0.625	80	25	--	50	25	Female	B	tumbled	--	--	£14.36	0
K0151.4A5 View product	1/2-13	63	20	13	40	21	Female	D	tumbled	20	--	£7.99	0
K0151.5A5 View product	1/2-13	63	20	--	40	21	Female	E	tumbled	22	25	£7.99	0
K0151.4A2 View product	1/4-20	32	12	6.4	20	10	Female	D	tumbled	10	--	£3.66	0
K0151.5A2 View product	1/4-20	32	12	--	20	10	Female	E	tumbled	28	32	£3.66	0
K0151.4A4 View product	3/8-16	50	18	10.5	32	17	Female	D	tumbled	16	--	£5.48	0
K0151.5A4 View product	3/8-16	50	18	--	32	17	Female	E	tumbled	18	21	£5.48	0
K0151.4A3 View product	5/16-18	40	14	8.4	25	13	Female	D	tumbled	13	--	£3.87	0
K0151.5A3 View product	5/16-18	40	14	--	25	13	Female	E	tumbled	15	18	£3.87	0
K0151.4A6 View product	5/8-11	80	25	17	50	25	Female	D	tumbled	20	--	£14.36	0
K0151.5A6 View product	5/8-11	80	25	--	50	25	Female	E	tumbled	28	32	£14.36	0
