K0150 - Star Knobs In Stainless Steel Five Hole Types Sizes 6-12mm

K0150 - Star Knobs In Stainless Steel Five Hole Types Sizes 6-12mm

Material:
Stainless steel 1.4308.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:
Ground and polished or blasted.
Grub screw and pin bright.

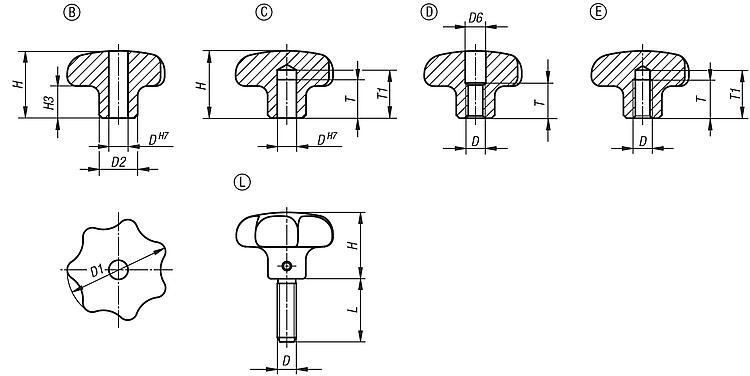

Drawing reference:
Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole
Form L: external thread

Star Grip. 6mm Hole Diameter. 32mm Grip Diameter. Stainless Steel Blasted.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	D	D1	D2	D6	DIN	Form	H	H3	L	T	T1	Price (Exc. Tax)	Stock
Filters
K0150.232062 View product	6	32	12	--	similar to DIN 6336	B	21	10	--	--	--	£7.98	0
K0150.232063 View product	6	32	12	--	similar to DIN 6336	B	21	10	--	--	--	£7.18	0
K0150.240082 View product	8	40	14	--	similar to DIN 6336	B	26	13	--	--	--	£10.45	0
K0150.240083 View product	8	40	14	--	similar to DIN 6336	B	26	13	--	--	--	£9.39	0
K0150.250102 View product	10	50	18	--	similar to DIN 6336	B	34	17	--	--	--	£12.61	0
K0150.250103 View product	10	50	18	--	similar to DIN 6336	B	34	17	--	--	--	£11.31	0
K0150.263122 View product	12	63	20	--	similar to DIN 6336	B	42	21	--	--	--	£16.53	0
K0150.263123 View product	12	63	20	--	similar to DIN 6336	B	42	21	--	--	--	£14.87	0
K0150.332062 View product	6	32	12	--	similar to DIN 6336	C	21	10	--	12	15	£8.87	16
K0150.332063 View product	6	32	12	--	similar to DIN 6336	C	21	10	--	12	15	£8.00	0
K0150.340082 View product	8	40	14	--	similar to DIN 6336	C	26	13	--	15	18	£11.63	0
K0150.340083 View product	8	40	14	--	similar to DIN 6336	C	26	13	--	15	18	£10.49	0
K0150.350102 View product	10	50	18	--	similar to DIN 6336	C	34	17	--	18	21	£15.33	0
K0150.350103 View product	10	50	18	--	similar to DIN 6336	C	34	17	--	18	21	£13.80	2
K0150.363122 View product	12	63	20	--	similar to DIN 6336	C	42	21	--	22	25	£19.87	8
K0150.363123 View product	12	63	20	--	similar to DIN 6336	C	42	21	--	22	25	£17.89	0
K0150.432062 View product	M6	32	12	6,4	similar to DIN 6336	D	21	10	--	11	--	£9.83	3
K0150.432063 View product	M6	32	12	6,4	similar to DIN 6336	D	21	10	--	11	--	£8.84	0
K0150.440082 View product	M8	40	14	8,4	similar to DIN 6336	D	26	13	--	14	--	£12.42	30
K0150.440083 View product	M8	40	14	8,4	similar to DIN 6336	D	26	13	--	14	--	£11.18	0
K0150.450102 View product	M10	50	18	10,5	similar to DIN 6336	D	34	17	--	18	--	£16.55	20
K0150.450103 View product	M10	50	18	10,5	similar to DIN 6336	D	34	17	--	18	--	£14.90	0
K0150.463122 View product	M12	63	20	13	similar to DIN 6336	D	42	21	--	22	--	£20.97	2
K0150.463123 View product	M12	63	20	13	similar to DIN 6336	D	42	21	--	22	--	£18.90	0
K0150.532062 View product	M6	32	12	--	similar to DIN 6336	E	21	10	--	12	15	£9.83	2
K0150.532063 View product	M6	32	12	--	similar to DIN 6336	E	21	10	--	12	15	£8.84	0
K0150.540082 View product	M8	40	14	--	similar to DIN 6336	E	26	13	--	15	18	£12.42	0
K0150.540083 View product	M8	40	14	--	similar to DIN 6336	E	26	13	--	15	18	£11.18	0
K0150.550102 View product	M10	50	18	--	similar to DIN 6336	E	34	17	--	18	21	£16.55	0
K0150.550103 View product	M10	50	18	--	similar to DIN 6336	E	34	17	--	18	21	£14.90	0
K0150.563122 View product	M12	63	20	--	similar to DIN 6336	E	42	21	--	22	25	£20.97	0
K0150.563123 View product	M12	63	20	--	similar to DIN 6336	E	42	21	--	22	25	£18.90	0
K0150.632063X15 View product	M6	32	12	--	similar to DIN 6336	L	21	10	15	--	--	£12.85	0
K0150.632063X20 View product	M6	32	12	--	similar to DIN 6336	L	21	10	20	--	--	£12.94	0
K0150.632063X25 View product	M6	32	12	--	similar to DIN 6336	L	21	10	25	--	--	£13.01	0
K0150.632063X30 View product	M6	32	12	--	similar to DIN 6336	L	21	10	30	--	--	£13.03	0
K0150.640083X20 View product	M8	40	14	--	similar to DIN 6336	L	26	13	20	--	--	£14.29	0
K0150.640083X25 View product	M8	40	14	--	similar to DIN 6336	L	26	13	25	--	--	£14.45	0
K0150.640083X30 View product	M8	40	14	--	similar to DIN 6336	L	26	13	30	--	--	£14.55	0
K0150.640083X40 View product	M8	40	14	--	similar to DIN 6336	L	26	13	40	--	--	£14.79	0
K0150.650103X25 View product	M10	50	18	--	similar to DIN 6336	L	34	17	25	--	--	£18.59	0
K0150.650103X30 View product	M10	50	18	--	similar to DIN 6336	L	34	17	30	--	--	£18.77	0
K0150.650103X40 View product	M10	50	18	--	similar to DIN 6336	L	34	17	40	--	--	£19.00	0
K0150.650103X50 View product	M10	50	18	--	similar to DIN 6336	L	34	17	50	--	--	£19.22	0
K0150.663123X30 View product	M12	63	20	--	similar to DIN 6336	L	42	21	30	--	--	£23.79	0
K0150.663123X40 View product	M12	63	20	--	similar to DIN 6336	L	42	21	40	--	--	£23.98	0
K0150.663123X50 View product	M12	63	20	--	similar to DIN 6336	L	42	21	50	--	--	£24.64	0
K0150.663123X60 View product	M12	63	20	--	similar to DIN 6336	L	42	21	60	--	--	£24.95	0
