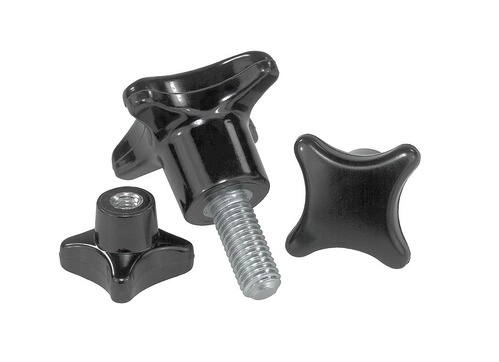

K0148 - Palm Knobs In Plastic Four Types Size M6-M12

K0148 - Palm Knobs In Plastic Four Types Size M6-M12

Material:
Black thermoset PF 31.
Bush and screw electro zinc-plated steel.

Version:
High-gloss polished.

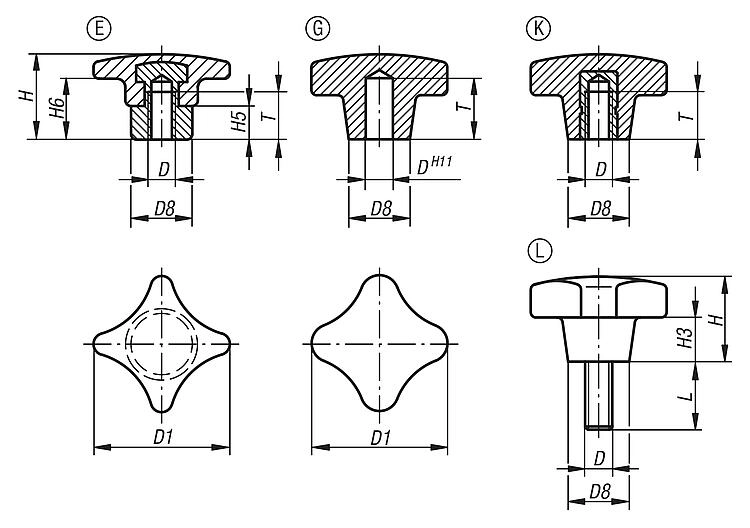

Drawing reference:
Form E: projecting steel bush
Form G: blind hole
Form K: tapped bush
Form L: external thread

Palm Grip. Plastic. M12x60mm Steel Thread. 63mm Grip Diameter.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	D	D1	D8	DIN	Form	H	H3	H5	H6	L	T	Price (Exc. Tax)	Stock
Filters
K0148.205 View product	M5	25	12	similar to DIN 6335	K	16	8	--	--	--	9,5	£0.69	0
K0148.206 View product	M6	32	14	similar to DIN 6335	K	20	10	--	--	--	12	£0.77	7
K0148.208 View product	M8	40	18	similar to DIN 6335	K	25	13	--	--	--	14	£1.11	12
K0148.210 View product	M10	50	22	similar to DIN 6335	K	32	20	--	--	--	18	£1.47	47
K0148.212 View product	M12	63	26	similar to DIN 6335	K	40	25	--	--	--	22	£2.51	2
K0148.216 View product	M16	80	35	similar to DIN 6335	K	50	30	--	--	--	30	£6.84	20
K0148.306 View product	M6	32	12	similar to DIN 6335	E	23	--	9	12	--	12	£2.91	15
K0148.308 View product	M8	40	14	similar to DIN 6335	E	26	--	10	13	--	15	£3.20	5
K0148.310 View product	M10	50	18	similar to DIN 6335	E	32	--	12	18	--	18	£4.10	9
K0148.312 View product	M12	63	20	similar to DIN 6335	E	40	--	14	23	--	22	£5.80	12
K0148.316 View product	M16	80	25	similar to DIN 6335	E	50	--	17	28	--	28	£9.01	10
K0148.405 View product	5	25	12	similar to DIN 6335	G	16	8	--	--	--	12	£0.53	10
K0148.406 View product	6	32	14	similar to DIN 6335	G	20	10	--	--	--	15	£0.69	10
K0148.408 View product	8	40	18	similar to DIN 6335	G	25	13	--	--	--	18	£1.17	10
K0148.410 View product	10	50	22	similar to DIN 6335	G	32	20	--	--	--	21	£1.38	6
K0148.412 View product	12	63	26	similar to DIN 6335	G	40	25	--	--	--	25	£2.23	10
K0148.505X15 View product	M5	25	12	similar to DIN 6335	L	16	8	--	--	15	--	£0.86	0
K0148.505X20 View product	M5	25	12	similar to DIN 6335	L	16	8	--	--	20	--	£0.86	43
K0148.505X25 View product	M5	25	12	similar to DIN 6335	L	16	8	--	--	25	--	£0.89	77
K0148.505X30 View product	M5	25	12	similar to DIN 6335	L	16	8	--	--	30	--	£0.92	24
K0148.505X40 View product	M5	25	12	similar to DIN 6335	L	16	8	--	--	40	--	£1.01	11
K0148.505X50 View product	M5	25	12	similar to DIN 6335	L	16	8	--	--	50	--	£1.01	20
K0148.506X15 View product	M6	32	14	similar to DIN 6335	L	20	10	--	--	15	--	£0.92	14
K0148.506X20 View product	M6	32	14	similar to DIN 6335	L	20	10	--	--	20	--	£0.92	66
K0148.506X25 View product	M6	32	14	similar to DIN 6335	L	20	10	--	--	25	--	£1.01	29
K0148.506X30 View product	M6	32	14	similar to DIN 6335	L	20	10	--	--	30	--	£1.01	12
K0148.506X40 View product	M6	32	14	similar to DIN 6335	L	20	10	--	--	40	--	£1.09	6
K0148.506X50 View product	M6	32	14	similar to DIN 6335	L	20	10	--	--	50	--	£1.11	2
K0148.508X20 View product	M8	40	18	similar to DIN 6335	L	25	13	--	--	20	--	£1.22	0
K0148.508X25 View product	M8	40	18	similar to DIN 6335	L	25	13	--	--	25	--	£1.22	200
K0148.508X30 View product	M8	40	18	similar to DIN 6335	L	25	13	--	--	30	--	£1.25	0
K0148.508X35 View product	M8	40	18	similar to DIN 6335	L	25	13	--	--	35	--	£1.41	10
K0148.508X40 View product	M8	40	18	similar to DIN 6335	L	25	13	--	--	40	--	£1.44	0
K0148.508X45 View product	M8	40	18	similar to DIN 6335	L	25	13	--	--	45	--	£1.53	8
K0148.508X50 View product	M8	40	18	similar to DIN 6335	L	25	13	--	--	50	--	£1.67	0
K0148.510X20 View product	M10	50	22	similar to DIN 6335	L	32	20	--	--	20	--	£1.65	7
K0148.510X25 View product	M10	50	22	similar to DIN 6335	L	32	20	--	--	25	--	£1.69	13
K0148.510X30 View product	M10	50	22	similar to DIN 6335	L	32	20	--	--	30	--	£1.79	4
K0148.510X35 View product	M10	50	22	similar to DIN 6335	L	32	20	--	--	35	--	£1.88	6
K0148.510X40 View product	M10	50	22	similar to DIN 6335	L	32	20	--	--	40	--	£2.01	14
K0148.510X45 View product	M10	50	22	similar to DIN 6335	L	32	20	--	--	45	--	£2.07	10
K0148.510X50 View product	M10	50	22	similar to DIN 6335	L	32	20	--	--	50	--	£2.17	0
K0148.512X20 View product	M12	63	26	similar to DIN 6335	L	40	25	--	--	20	--	£2.61	62
K0148.512X30 View product	M12	63	26	similar to DIN 6335	L	40	25	--	--	30	--	£2.74	5
K0148.512X40 View product	M12	63	26	similar to DIN 6335	L	40	25	--	--	40	--	£2.87	0
K0148.512X50 View product	M12	63	26	similar to DIN 6335	L	40	25	--	--	50	--	£3.03	6
K0148.512X60 View product	M12	63	26	similar to DIN 6335	L	40	25	--	--	60	--	£3.26	35
