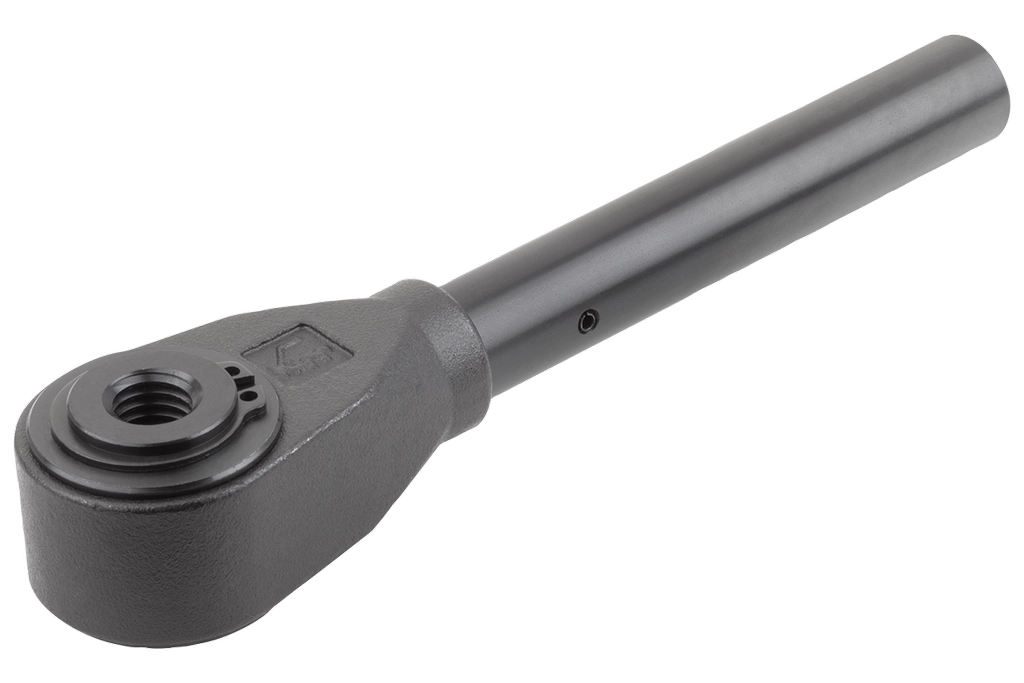

K0128 Ratchet Levers With Female Thread Size M10-M42

K0128 Ratchet Levers With Female Thread Size M10-M42

Material:
Housing in tempered steel; tension nut and tension pin in case-hardened free-cutting steel Surface finish:
Black oxide finish; matt-finished or high-polish chromium-plated versions available at extra charge Note:

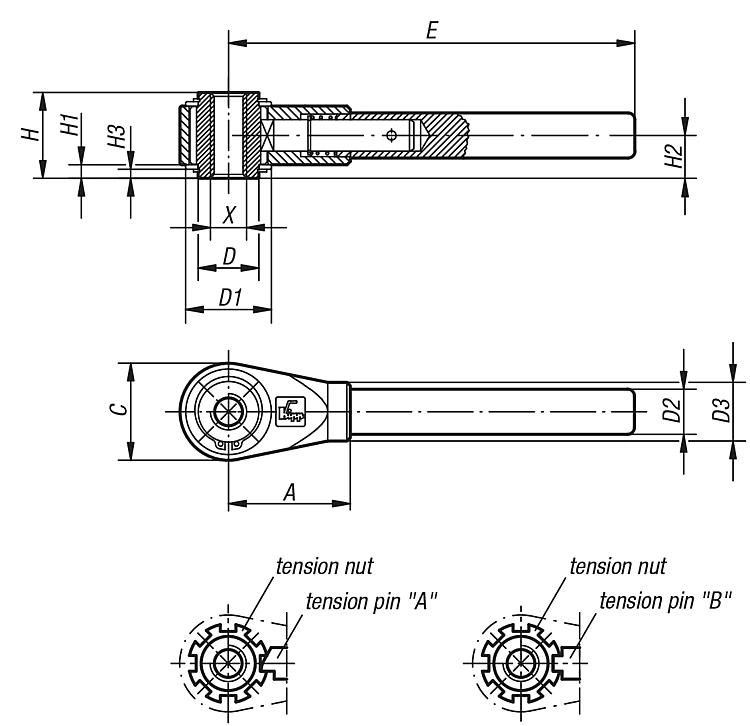

Tension Pin A standard version (for ratchet action):
Use for clamping and releasing in limited space and when considerable travel is involved. In order to change the tightening direction, the handle must be reversed by 180°. Tension Pin B special version:
Use for clamping and releasing in limited space and when short travel is involved. The handle is not reversed in order to change the tightening direction. It must be pulled out before it can be engaged in the next slot.

Ratchet Lever. M12 Thread. 150mm Long Handle.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	A	A1	A2	D	D1	D2	D3	D4	Form	H	H1	H2	H3	No. of index slots	X	Price (Exc. Tax)	Stock
Filters
K0128.310 View product	150	168	48	22	33	17	22	36	0°	31	4,5	15,5	3	7	M10	£98.05	2
K0128.312 View product	150	168	48	22	33	17	22	36	0°	31	4,5	15,5	3	7	M12	£98.05	0
K0128.314 View product	180	201,5	54	27	38	20	26	43	0°	38	6	19	4	8	M14	£117.25	0
K0128.316 View product	180	201,5	54	27	38	20	26	43	0°	38	6	19	4	8	M16	£117.25	0
K0128.318 View product	230	255,5	70	35	45	24	30	51	0°	42	6	21	4	8	M18	£150.77	0
K0128.320 View product	230	255,5	70	35	45	24	30	51	0°	42	6	21	4	8	M20	£150.77	0
K0128.322 View product	300	330,5	80	42	56	28	35	61	0°	47	6	23,5	4	9	M22	£206.23	0
K0128.324 View product	300	330,5	80	42	56	28	35	61	0°	47	6	23,5	4	9	M24	£206.23	0
K0128.327 View product	300	330,5	80	42	56	28	35	61	0°	47	6	23,5	4	9	M27	£206.23	0
K0128.330 View product	400	441	110	60	75	32	38	82	0°	53	7,5	26,5	5	11	M30	£393.72	0
K0128.336 View product	400	441	110	60	75	32	38	82	0°	53	7,5	26,5	5	11	M36	£393.72	0
K0128.342 View product	400	441	110	60	75	32	38	82	0°	53	7,5	26,5	5	11	M42	£393.72	0
