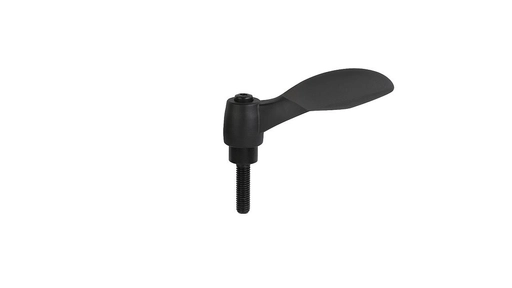

Soft Touch Clamp Lever. 80.2mm Handle Length. M8x35mmThread.

Item Code: K0125.30801X35

Soft Touch Clamp Lever. 80.2mm Handle Length. M8x35mmThread.

Item Code: K0125.30801X35

Soft Touch Clamp Lever. 80.2mm Handle Length. M8x35mmThread.

Material:
Handle:
Hard component fibreglass reinforced plastic with die-cast zinc toothed ring. Soft component Thermoflex based on SEBS.
Steel parts:
grade 5.8.

Version
Steel parts black oxidised.

Material:
The hard and soft components are supplied in black grey RAL 7021 as standard.

Where L is greater than 60 mm the thread length is always 60 mm.

Quick Links

Dispatch by 06/03/26

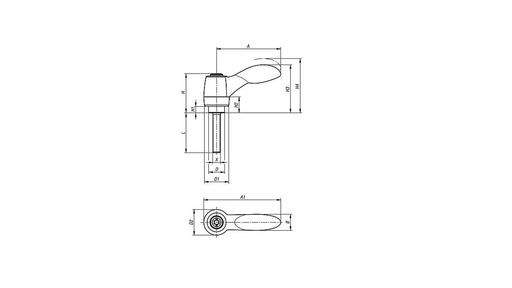

No. Of Teeth: 22

A: 80.2

A1: 91.2

B: 20.7

D: 16

D1: 21

D2: 22

H: 37

H1: 10

H2: 17
