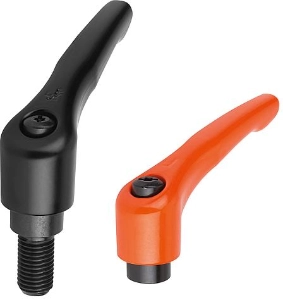

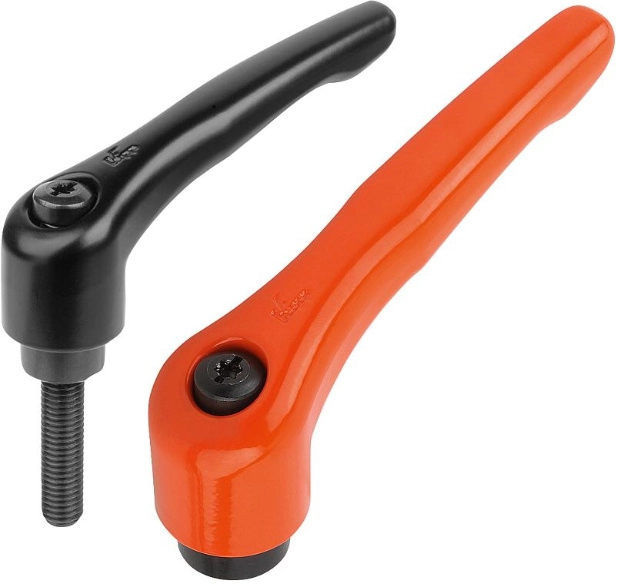

K0122 - Clamp Levers With Zinc Handle and Steel Thread M3-M16

K0122 - Clamp Levers With Zinc Handle and Steel Thread M3-M16

List view Grid view

Material:
Handle in die cast zinc to DIN 1743,
steel parts quality class 5.8

Surface finish:
Handle plastic-coated, steel parts black oxide finish

Note:
Standard colours are: black satin finish, orange RAL 2004.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

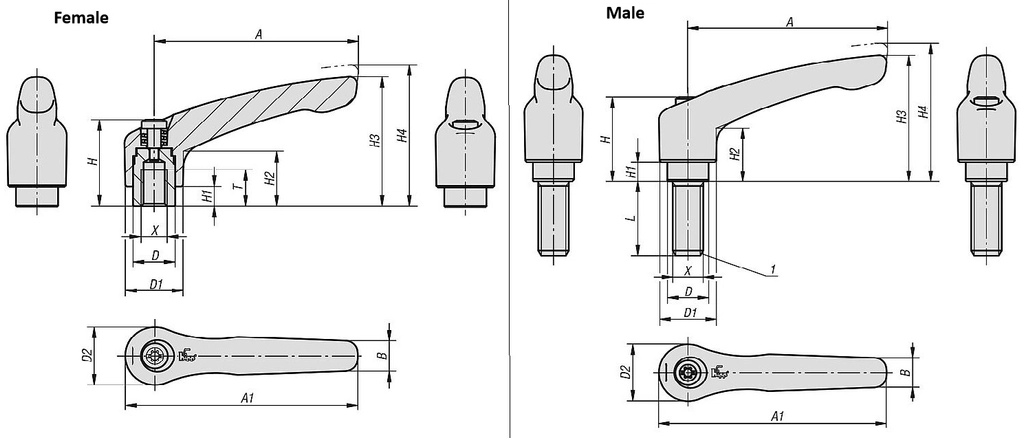

	Male / Female	A	A1	B	D	D1	D2	H	H1	H2	H3	H4	L	T	X	Price (Exc. Tax)	Stock
Filters
K0122.0031 View product	Female	30	37	7	10	13	14	24.5	4	14.5	30	33	--	9	M3	£4.13	21
K0122.0032 View product	Female	30	37	7	10	13	14	24.5	4	14.5	30	33	--	9	M3	£4.13	0
K0122.0041 View product	Female	30	37	7	10	13	14	24.5	4	14.5	30	33	--	9	M4	£4.13	5
K0122.0041X10 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	10	--	M4	£4.42	12
K0122.0041X15 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	15	--	M4	£4.42	0
K0122.0041X20 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	20	--	M4	£4.42	12
K0122.0041X25 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	25	--	M4	£4.42	4
K0122.0041X30 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	30	--	M4	£4.42	17
K0122.0041X35 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	35	--	M4	£4.80	17
K0122.0041X40 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	40	--	M4	£4.80	20
K0122.0041X45 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	45	--	M4	£4.80	14
K0122.0041X50 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	50	--	M4	£4.80	15
K0122.0042 View product	Female	30	37	7	10	13	14	24.5	4	14.5	30	33	--	9	M4	£4.13	0
K0122.0042X10 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	10	--	M4	£4.42	43
K0122.0042X15 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	15	--	M4	£4.42	1
K0122.0042X20 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	20	--	M4	£4.42	0
K0122.0042X25 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	25	--	M4	£4.42	7
K0122.0042X30 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	30	--	M4	£4.42	1
K0122.0042X35 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	35	--	M4	£4.80	0
K0122.0042X40 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	40	--	M4	£4.80	0
K0122.0042X45 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	45	--	M4	£4.80	0
K0122.0042X50 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	50	--	M4	£4.80	0
K0122.0051 View product	Female	30	37	7	10	13	14	24.5	4	14.5	30	33	--	9	M5	£4.13	7
K0122.0051X10 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	10	--	M5	£4.42	26
K0122.0051X15 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	15	--	M5	£4.42	0
K0122.0051X20 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	20	--	M5	£4.42	0
K0122.0051X25 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	25	--	M5	£4.42	0
K0122.0051X30 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	30	--	M5	£4.42	16
K0122.0051X35 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	35	--	M5	£4.80	6
K0122.0051X40 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	40	--	M5	£4.80	24
K0122.0051X45 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	45	--	M5	£4.80	38
K0122.0051X50 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	50	--	M5	£4.80	23
K0122.0052 View product	Female	30	37	7	10	13	14	24.5	4	14.5	30	33	--	9	M5	£4.13	52
K0122.0052X10 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	10	--	M5	£4.42	42
K0122.0052X15 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	15	--	M5	£4.42	0
K0122.0052X20 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	20	--	M5	£4.42	0
K0122.0052X25 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	25	--	M5	£4.42	0
K0122.0052X30 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	30	--	M5	£4.42	4
K0122.0052X35 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	35	--	M5	£4.80	0
K0122.0052X40 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	40	--	M5	£4.80	13
K0122.0052X45 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	45	--	M5	£4.80	24
K0122.0052X50 View product	Male	30	37	7	10	13	14	24.5	4	14.5	30	33	50	--	M5	£4.80	0
K0122.1041 View product	Female	40	47	7	10	13	14	24.5	4	14.5	31	34	--	9	M4	£4.13	29
K0122.1042 View product	Female	40	47	7	10	13	14	24.5	4	14.5	31	34	--	9	M4	£4.13	13
K0122.1051 View product	Female	40	47	7	10	13	14	24.5	4	14.5	31	34	--	9	M5	£4.13	24
K0122.1051X10 View product	Male	40	47	7	10	13	14	24.5	4	14.5	31	34	10	--	M5	£4.42	17
K0122.1051X15 View product	Male	40	47	7	10	13	14	24.5	4	14.5	31	34	15	--	M5	£4.42	0
K0122.1051X20 View product	Male	40	47	7	10	13	14	24.5	4	14.5	31	34	20	--	M5	£4.42	17
