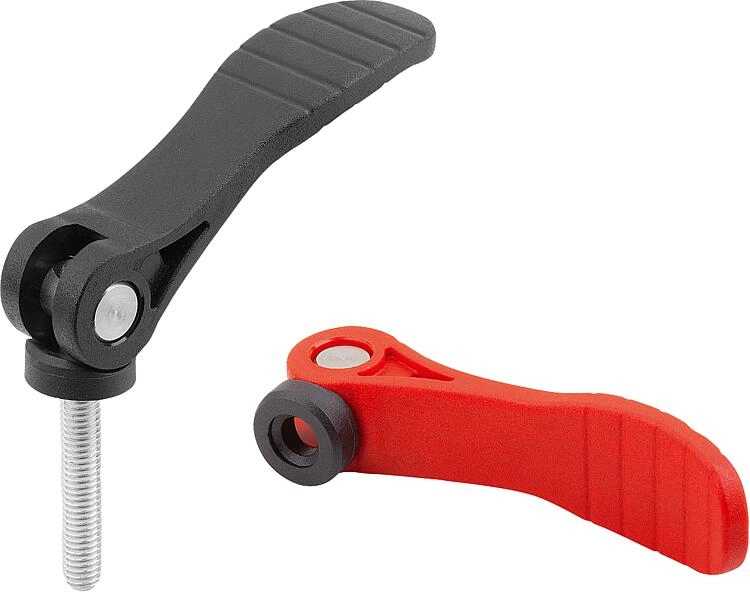

K2122 - Cam Levers With Plastic Handle and Steel & Stainless Steel Thread Thread M5-M10

K2122 - Cam Levers With Plastic Handle and Steel & Stainless Steel Thread Thread M5-M10

List view Grid view

Product description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle PA 6.6 fibreglass reinforced plastic
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin stainless steel 1.4305.
Stud steel, grade 5.8 or stainless steel 1.4305.

Version:
Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud blue-passivated or bright stainless steel.

Note:
Plastics are subject to creeping under load (retardation).

Accessory:
For slightly curved contact faces, a stainless steel washer K2130 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

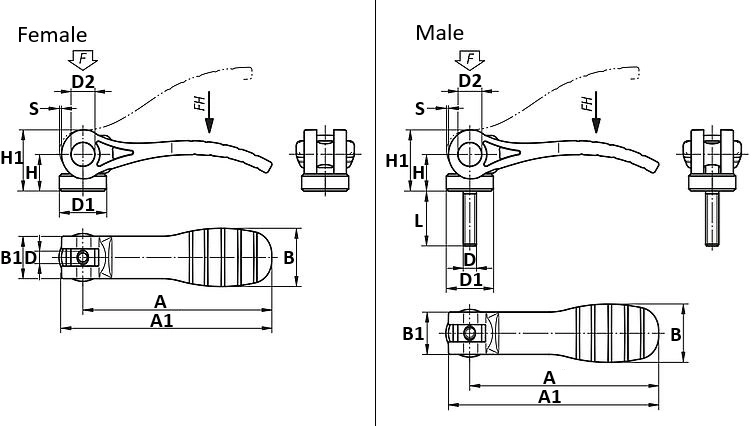

Line drawing placeholder

Move drawing here

	Hand Force FH (N)	A	A1	B	B1	Clamping force F (kN)	D	D1	D2	H	H1	L	Male/Female	Travel S	Price (Exc. Tax)	Stock
Filters
K2122.15218406X30 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	30	£6.04	0
K2122.15218405X30 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	30	£6.04	0
K2122.2521108X25 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	25	£7.71	6
K2122.15318406X50 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	50	£9.63	0
K2122.15318406X30 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	30	£9.02	0
K2122.1521105X50 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	50	£7.03	0
K2122.2531108X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	50	£12.36	0
K2122.1521105X40 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	40	£7.03	0
K2122.2531108X40 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	40	£12.36	0
K2122.15318405X40 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	40	£9.63	0
K2122.1521105X20 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	20	£6.59	0
K2122.1531106X50 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	50	£10.57	4
K2122.25218410X50 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	50	£7.53	0
K2122.15318405 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	--	Female	1.15	£8.47	0
K2122.1531106X20 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	20	£9.87	0
K2122.15218406 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	--	Female	1.15	£5.59	0
K2122.25218408X40 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	40	£7.53	0
K2122.1531105X40 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	40	£10.57	0
K2122.2531108 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	--	Female	1.5	£10.79	0
K2122.1531105X20 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	20	£9.87	0
K2122.15218406X50 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	50	£6.43	0
K2122.1531105 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	--	Female	1.15	£9.28	0
K2122.2521110X40 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	40	£8.25	0
K2122.25318410X40 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	40	£11.30	0
K2122.2521108X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	50	£8.25	2
K2122.15218405X50 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	50	£6.43	0
K2122.25318408X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	50	£11.30	0
K2122.15218405X40 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	40	£6.43	0
K2122.25318408X40 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	40	£11.30	0
K2122.15218405X20 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	20	£6.04	0
K2122.1521106X50 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	50	£7.03	0
K2122.1521106X30 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	1.15	Male	30	£6.59	0
K2122.2531110X25 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	25	£11.59	0
K2122.15318405X50 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	50	£9.63	0
K2122.2531108X30 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	30	£11.59	0
K2122.15318405X30 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	30	£9.02	0
K2122.15318406 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	--	Female	1.15	£8.47	0
K2122.25218410X40 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	40	£7.53	0
K2122.25218410X25 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	25	£7.04	0
K2122.25218408X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	1.5	Male	50	£7.53	0
K2122.1531105X50 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	50	£10.57	0
K2122.15218405 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	--	Female	1.15	£5.59	0
K2122.1531105X30 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	1.15	Male	30	£9.87	0
K2122.25318410X50 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	50	£11.30	0
K2122.1531106 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	--	Female	1.15	£9.28	0
K2122.1521106 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	--	Female	1.15	£6.16	0
K2122.2521110X25 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	25	£7.71	0
K2122.25318410X30 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	1.5	Male	30	£10.59	0
