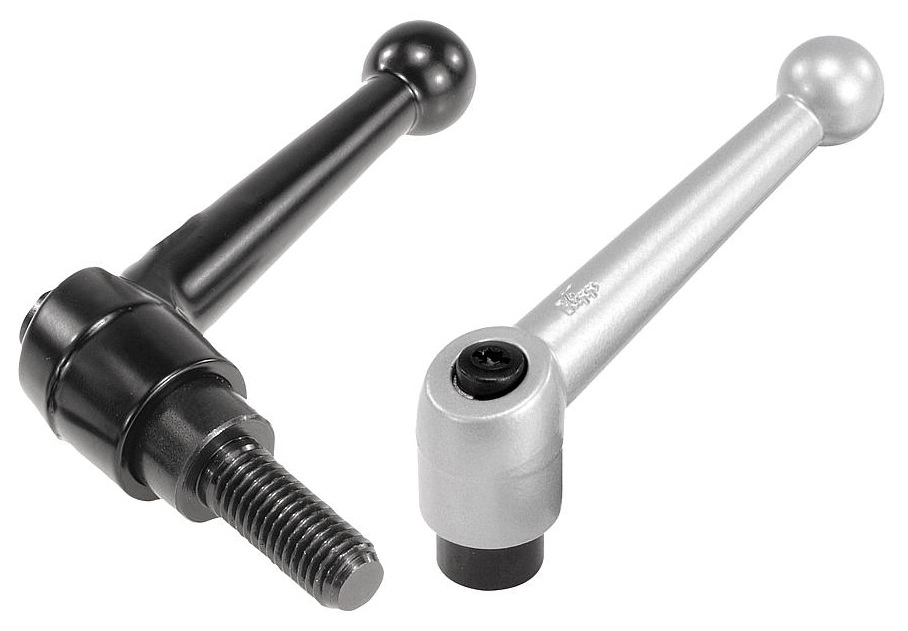

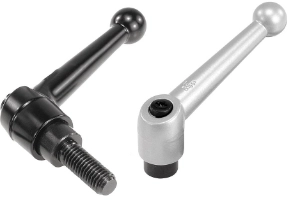

K0116 - Zinc Clamp Lever Parts in steel M4-M16

K0116 - Zinc Clamp Lever Parts in steel M4-M16

List view Grid view

Material:
Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.

Version:

Handle powder-coated.
Steel black oxidised.

Note:

Standard colours are:
black satin finish, silver metallic.

Where L ≥ 60 mm the thread length is always 60 mm.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

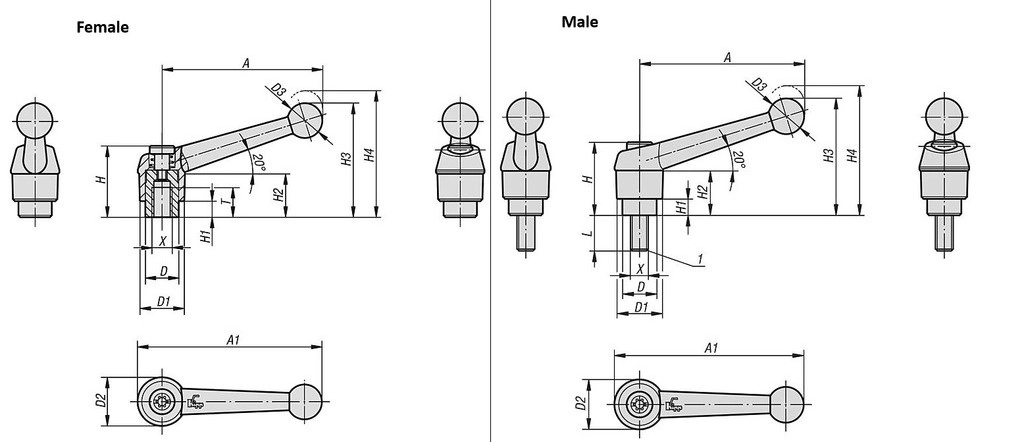

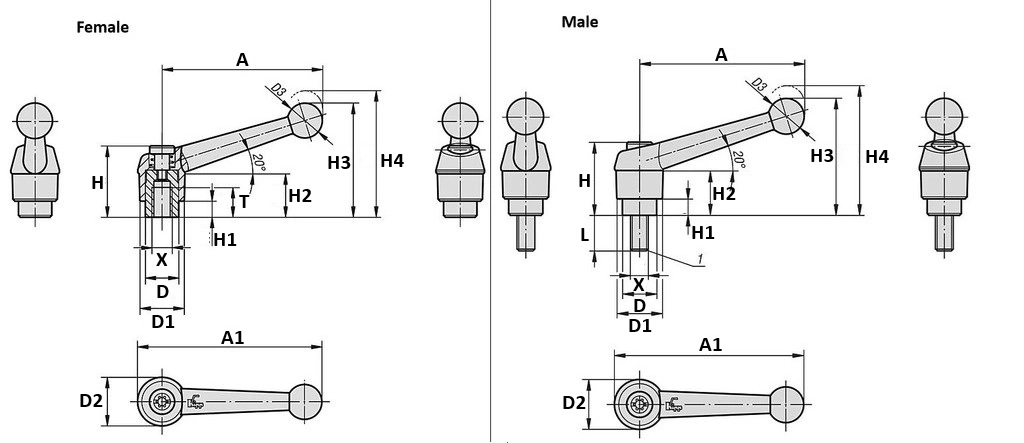

	A	A1	D	D1	D2	D3	H	H1	H2	H3	H4	L	Male/Female	T	X	Price (Exc. Tax)	Stock
Filters
K0116.1041 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	--	Female	9	M4	£4.26	23
K0116.1043 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	--	Female	9	M4	£4.26	16
K0116.1051 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	--	Female	9	M5	£4.26	11
K0116.1051X10 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	10	Male	--	M5	£4.56	3
K0116.1051X15 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	15	Male	--	M5	£4.56	10
K0116.1051X20 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	20	Male	--	M5	£4.56	2
K0116.1051X25 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	25	Male	--	M5	£4.56	19
K0116.1051X30 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	30	Male	--	M5	£4.56	14
K0116.1051X35 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	35	Male	--	M5	£4.95	3
K0116.1051X40 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	40	Male	--	M5	£4.95	8
K0116.1051X45 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	45	Male	--	M5	£4.95	0
K0116.1051X50 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	50	Male	--	M5	£4.95	0
K0116.1053 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	--	Female	9	M5	£4.26	0
K0116.1053X10 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	10	Male	--	M5	£4.56	0
K0116.1053X15 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	15	Male	--	M5	£4.56	2
K0116.1053X20 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	20	Male	--	M5	£4.56	0
K0116.1053X25 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	25	Male	--	M5	£4.56	0
K0116.1053X30 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	30	Male	--	M5	£4.56	5
K0116.1053X35 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	35	Male	--	M5	£4.95	0
K0116.1053X40 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	40	Male	--	M5	£4.95	1
K0116.1053X45 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	45	Male	--	M5	£4.95	0
K0116.1053X50 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	50	Male	--	M5	£4.95	0
K0116.1061 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	--	Female	9	M6	£4.26	0
K0116.1061X10 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	10	Male	--	M6	£4.56	16
K0116.1061X15 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	15	Male	--	M6	£4.56	0
K0116.1061X20 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	20	Male	--	M6	£4.56	0
K0116.1061X25 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	25	Male	--	M6	£4.56	0
K0116.1061X30 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	30	Male	--	M6	£4.56	16
K0116.1061X35 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	35	Male	--	M6	£4.95	1
K0116.1061X40 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	40	Male	--	M6	£4.95	0
K0116.1061X45 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	45	Male	--	M6	£4.95	0
K0116.1061X50 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	50	Male	--	M6	£4.95	17
K0116.1063 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	--	Female	9	M6	£4.26	15
K0116.1063X10 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	10	Male	--	M6	£4.56	10
K0116.1063X15 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	15	Male	--	M6	£4.56	16
K0116.1063X20 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	20	Male	--	M6	£4.56	0
K0116.1063X25 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	25	Male	--	M6	£4.56	4
K0116.1063X30 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	30	Male	--	M6	£4.56	0
K0116.1063X35 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	35	Male	--	M6	£4.95	0
K0116.1063X40 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	40	Male	--	M6	£4.95	0
K0116.1063X45 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	45	Male	--	M6	£4.95	0
K0116.1063X50 View product	39	46	10	13	14	10.5	24.5	4	15	32.5	35.5	50	Male	--	M6	£4.95	0
K0116.2061 View product	64	73	13.5	18	18.5	15.5	28.5	6.5	16.5	45.5	49.5	--	Female	12	M6	£5.39	0
K0116.2061X15 View product	64	73	13.5	18	18.5	15.5	28.5	6.5	16.5	45.5	49.5	15	Male	--	M6	£5.73	0
K0116.2061X20 View product	64	73	13.5	18	18.5	15.5	28.5	6.5	16.5	45.5	49.5	20	Male	--	M6	£5.73	0
K0116.2061X25 View product	64	73	13.5	18	18.5	15.5	28.5	6.5	16.5	45.5	49.5	25	Male	--	M6	£5.73	9
K0116.2061X30 View product	64	73	13.5	18	18.5	15.5	28.5	6.5	16.5	45.5	49.5	30	Male	--	M6	£5.73	0
K0116.2061X35 View product	64	73	13.5	18	18.5	15.5	28.5	6.5	16.5	45.5	49.5	35	Male	--	M6	£6.12	0
