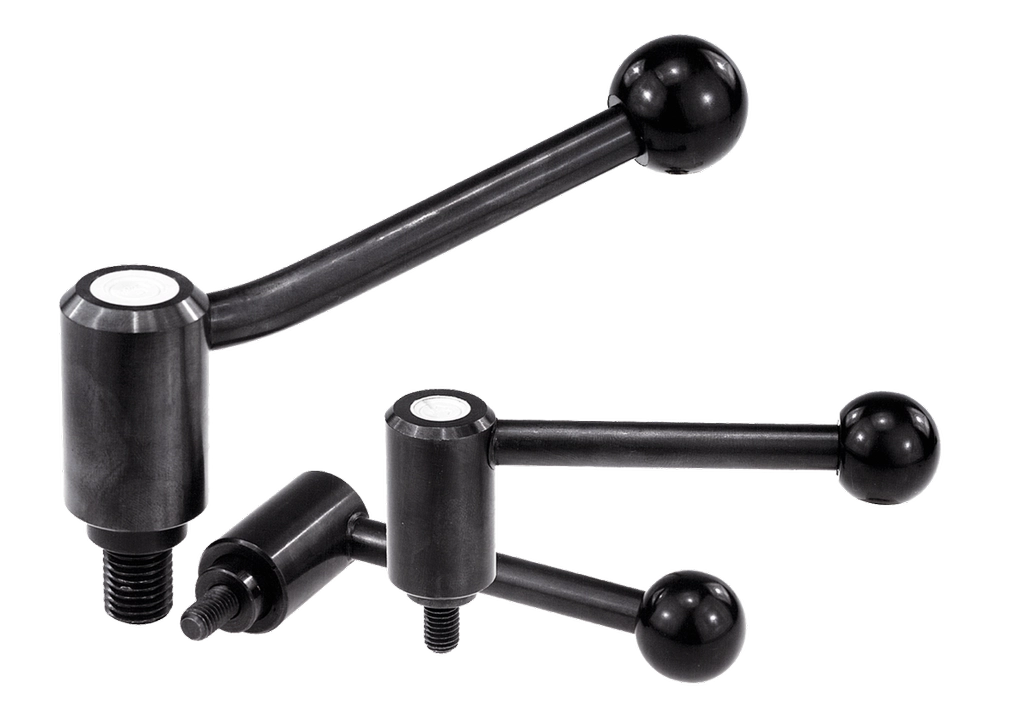

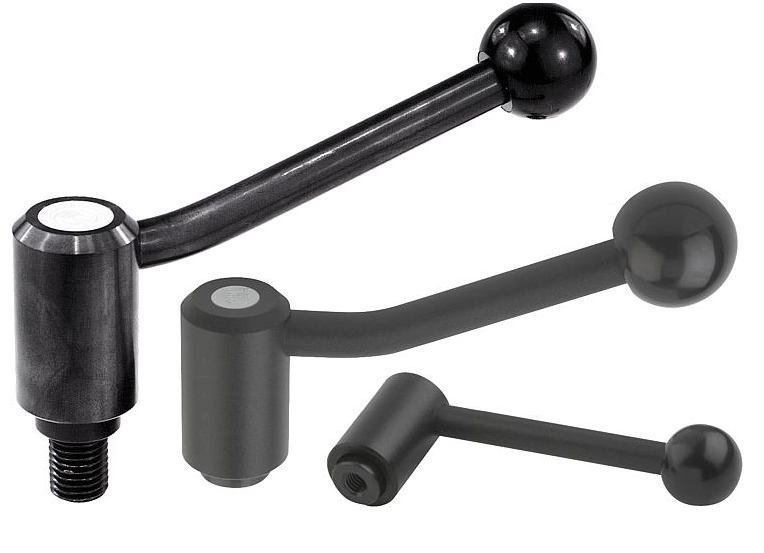

K0108 Inch - Tension Levers In Steel With Flat & Angled Types

K0108 Inch - Tension Levers In Steel With Flat & Angled Types

List view Grid view

Material:
Steel parts grade 5.8.
Ball knob black plastic.

Surface finish:
Powder-coated with fine texture, black.

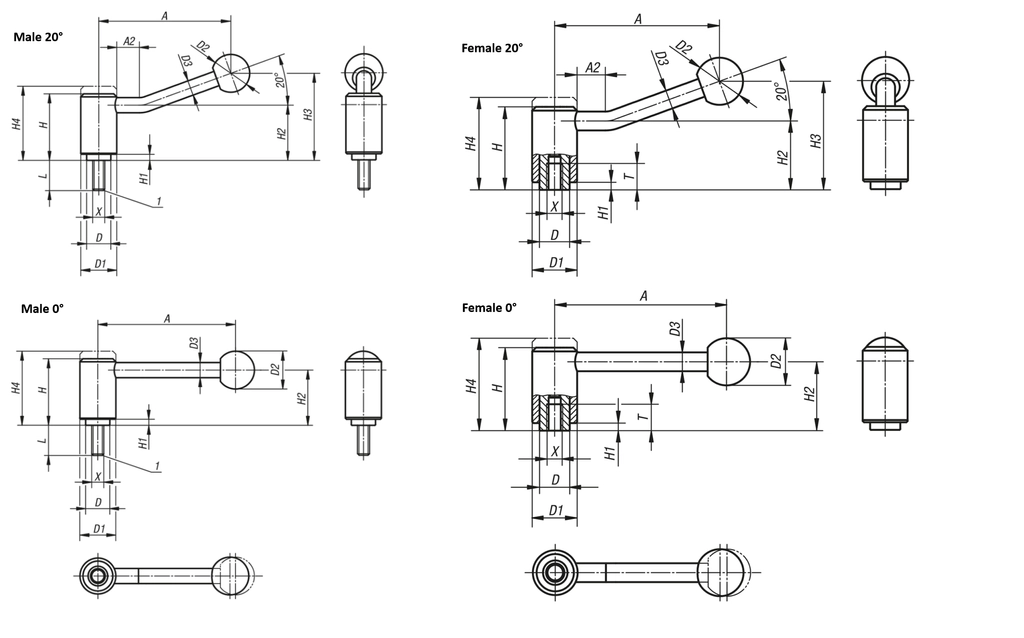

Drawing Reference:
1) flat point DIN EN ISO 4753

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	A	A2	D	D1	D2	D3	H	H1	H2	H3	H4	L	Male/Female	Style	T	X	No. Of Teeth	Price (Exc. Tax)	Stock
Filters
K0108.2A51 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	--	Female	20�	17	1/2-13	24	£29.37	0
K0108.2A51X20 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	20	Male	20�	--	1/2-13	24	£31.75	0
K0108.2A51X25 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	25	Male	20�	--	1/2-13	24	£31.75	0
K0108.2A51X30 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	30	Male	20�	--	1/2-13	24	£31.75	0
K0108.2A51X40 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	40	Male	20�	--	1/2-13	24	£33.03	0
K0108.2A51X50 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	50	Male	20�	--	1/2-13	24	£33.03	0
K0108.2A51X60 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	60	Male	20�	--	1/2-13	24	£33.03	0
K0108.2A41 View product	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	--	Female	20�	17	3/8-16	24	£29.37	0
K0108.2A52 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	--	Female	0�	17	1/2-13	24	£29.37	0
K0108.2A52X20 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	20	Male	0�	--	1/2-13	24	£31.75	0
K0108.2A52X25 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	25	Male	0�	--	1/2-13	24	£31.75	0
K0108.2A52X30 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	30	Male	0�	--	1/2-13	24	£31.75	0
K0108.2A52X40 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	40	Male	0�	--	1/2-13	24	£33.03	0
K0108.2A52X50 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	50	Male	0�	--	1/2-13	24	£33.03	0
K0108.2A52X60 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	60	Male	0�	--	1/2-13	24	£33.03	0
K0108.2A42 View product	111	--	19	28	32	12	51,5	5,5	42	--	57,5	--	Female	0�	17	3/8-16	24	£29.37	0
K0108.3A51 View product	128,5	15	23	33	32	13	58	6	47	81	65	--	Female	20�	23	1/2-13	26	£35.64	0
K0108.3A51X20 View product	128,5	15	23	33	32	13	58	6	47	81	65	20	Male	20�	--	1/2-13	26	£38.48	0
K0108.3A51X25 View product	128,5	15	23	33	32	13	58	6	47	81	65	25	Male	20�	--	1/2-13	26	£38.48	0
K0108.3A51X30 View product	128,5	15	23	33	32	13	58	6	47	81	65	30	Male	20�	--	1/2-13	26	£38.48	0
K0108.3A51X40 View product	128,5	15	23	33	32	13	58	6	47	81	65	40	Male	20�	--	1/2-13	26	£39.62	0
K0108.3A51X50 View product	128,5	15	23	33	32	13	58	6	47	81	65	50	Male	20�	--	1/2-13	26	£39.62	0
K0108.3A51X60 View product	128,5	15	23	33	32	13	58	6	47	81	65	60	Male	20�	--	1/2-13	26	£39.62	0
K0108.4A71 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	--	Female	20�	--	3/4-10	36	£41.97	0
K0108.4A71X30 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	30	Male	20�	--	3/4-10	36	£44.98	0
K0108.4A71X40 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	40	Male	20�	--	3/4-10	36	£46.72	0
K0108.4A71X50 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	50	Male	20�	--	3/4-10	36	£46.72	0
K0108.4A71X60 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	60	Male	20�	--	3/4-10	36	£46.72	0
K0108.3A61 View product	128,5	15	23	33	32	13	58	6	47	81	65	--	Female	20�	23	5/8-11	26	£35.64	0
K0108.4A61 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	--	Female	20�	--	5/8-11	36	£41.97	0
K0108.3A61X20 View product	128,5	15	23	33	32	13	58	6	47	81	65	20	Male	20�	--	5/8-11	26	£38.48	0
K0108.3A61X25 View product	128,5	15	23	33	32	13	58	6	47	81	65	25	Male	20�	--	5/8-11	26	£38.48	0
K0108.3A61X30 View product	128,5	15	23	33	32	13	58	6	47	81	65	30	Male	20�	--	5/8-11	26	£38.48	0
K0108.4A61X30 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	30	Male	20�	--	5/8-11	36	£44.98	0
K0108.3A61X40 View product	128,5	15	23	33	32	13	58	6	47	81	65	40	Male	20�	--	5/8-11	26	£39.62	0
K0108.4A61X40 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	40	Male	20�	--	5/8-11	36	£46.72	0
K0108.3A61X50 View product	128,5	15	23	33	32	13	58	6	47	81	65	50	Male	20�	--	5/8-11	26	£39.62	0
K0108.4A61X50 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	50	Male	20�	--	5/8-11	36	£46.72	0
K0108.3A61X60 View product	128,5	15	23	33	32	13	58	6	47	81	65	60	Male	20�	--	5/8-11	26	£39.62	0
K0108.4A61X60 View product	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	60	Male	20�	--	5/8-11	36	£46.72	0
K0108.3A52 View product	134,5	--	23	33	32	13	58	6	47	--	65	--	Female	0�	23	1/2-13	26	£35.64	0
K0108.3A52X20 View product	134,5	--	23	33	32	13	58	6	47	--	65	20	Male	0�	--	1/2-13	26	£38.48	0
K0108.3A52X25 View product	134,5	--	23	33	32	13	58	6	47	--	65	25	Male	0�	--	1/2-13	26	£38.48	0
K0108.3A52X30 View product	134,5	--	23	33	32	13	58	6	47	--	65	30	Male	0�	--	1/2-13	26	£38.48	0
K0108.3A52X40 View product	134,5	--	23	33	32	13	58	6	47	--	65	40	Male	0�	--	1/2-13	26	£39.62	0
K0108.3A52X50 View product	134,5	--	23	33	32	13	58	6	47	--	65	50	Male	0�	--	1/2-13	26	£39.62	0
K0108.3A52X60 View product	134,5	--	23	33	32	13	58	6	47	--	65	60	Male	0�	--	1/2-13	26	£39.62	0
K0108.3A62 View product	134,5	--	23	33	32	13	58	6	47	--	65	--	Female	0�	23	5/8-11	26	£35.64	0
