Item Code: K0037.04

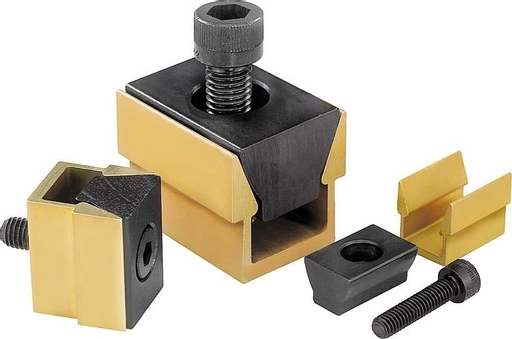

Wedge Clamp. M4 Thread. 15.9mm Long. Steel.

Item Code: K0037.04

Wedge Clamp. M4 Thread. 15.9mm Long. Steel.

Material:
Channel aluminium profile.
Wedge hardened steel.
Version:
Channel anodized.
Wedge black oxidised.
Note:
Two workpieces can be held simultaneously with the wedge clamp. They are ideal for clamping round or rectangular pieces. The compact design allows space-saving series clamping.

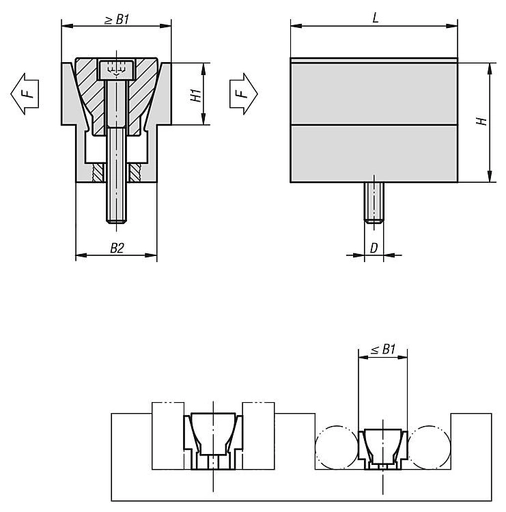

Drawing reference:
In clamped position dimension B1 max. given in the table should be achieved.

Quick Links

Dispatch by 09/06/25

M4
15,9
12,7
5,6
10,4
2,2
3,4
12,3 - 13,1

£14.56  ea. Excl VAT £17.47  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £13.40 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Channel aluminium profile.
Wedge hardened steel.
Version:
Channel anodized.
Wedge black oxidised.
Note:
Two workpieces can be held simultaneously with the wedge clamp. They are ideal for clamping round or rectangular pieces. The compact design allows space-saving series clamping.
Drawing reference:
In clamped position dimension B1 max. given in the table should be achieved.
DM4
L15,9
H12,7
H15,6
B210,4
Clamping force max. kN2,2
Tightening, torque, max. Nm3,4
B1 min. - max.12,3 - 13,1
