Item Code: K0035.010015

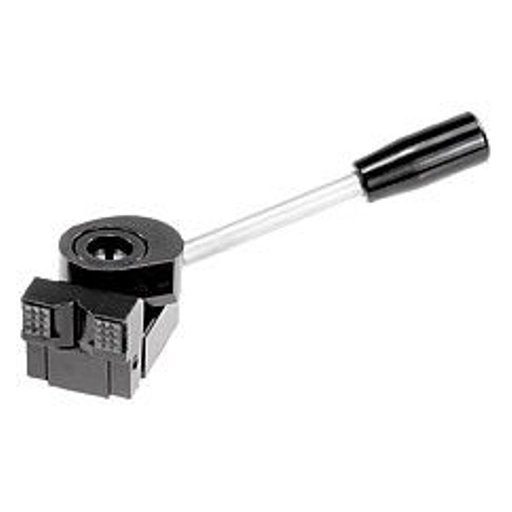

Side Clamp. 58.5mm Clamping Distance. 40x39mm Body. Right Hand. Steel.

Side Clamp. 58.5mm Clamping Distance. 40x39mm Body. Right Hand. Steel.

Item Code: K0035.010015

Side Clamp. 58.5mm Clamping Distance. 40x39mm Body. Right Hand. Steel.

Material:
Steel Surface finish:
Case-hardened with black oxide finish Note:
Cam type edge clamps are used for rapid clamping, to fasten the workpiece by means of a cam lever effect.

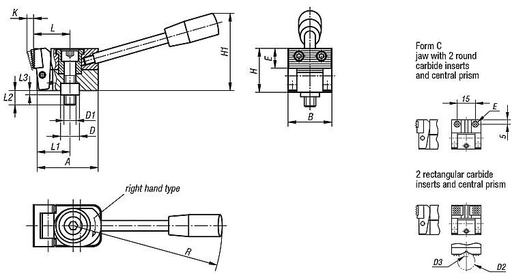

The cam type edge clamp is positioned and fixed with the centring bush (see drawing). The types K0035.006010, K0035.006015, K0035.006030 and K0035.006035 have 2 round carbide serrations. Clamping force:
K0035.006... = 3800 N
K0035.010... = 7200 N

Quick Links

Dispatch by 25/07/25

58,5
40
18
M10
27
4,5
12,7
7200
C
39
74
5,5
37
31,5
27
6
143

£196.44  ea. Excl VAT £235.73  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
5 + £184.65 6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel Surface finish:
Case-hardened with black oxide finish Note:
Cam type edge clamps are used for rapid clamping, to fasten the workpiece by means of a cam lever effect.
The cam type edge clamp is positioned and fixed with the centring bush (see drawing). The types K0035.006010, K0035.006015, K0035.006030 and K0035.006035 have 2 round carbide serrations. Clamping force:
K0035.006... = 3800 N
K0035.010... = 7200 N
A58,5
B40
D18
D1M10
D2 max.27
D3 min.4,5
E12,7
F N7200
FormC
H39
H174
K5,5
L37
L131,5
L227
L36
R143
STP
