Back to K0027 - Low Profile T-slot Cam Clamps Size M6-M16

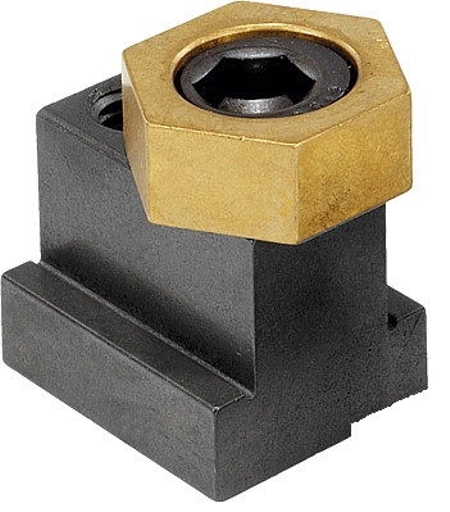

T Slot Cam Clamp. 10mm Slot Width. Brass.

Item Code: K0027.10

T Slot Cam Clamp. 10mm Slot Width. Brass.

04436_351x399.jpg?

04436Anwb1_242x242.jpg?

Cam-screws-with-hexagon-washer-for-T-slots_436x359.jpg?

Item Code: K0027.10

T Slot Cam Clamp. 10mm Slot Width. Brass.

Material:
Tempered steel, brass hexagonal nut Surface finish:
Heat-treated class 10.9, black oxide finish Note:

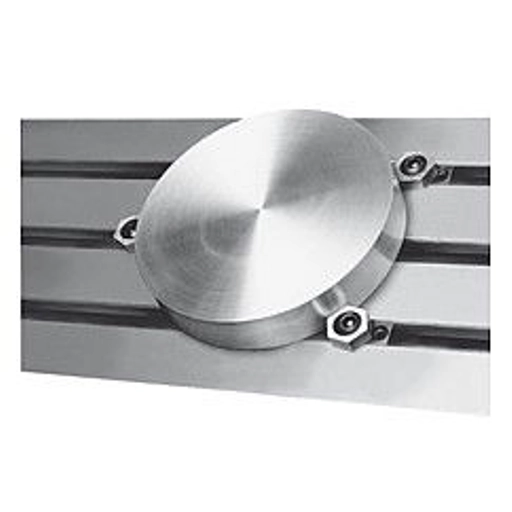

The low-profile T-slot cam clamps can be used directly on machine tables or tables with T-slots. The through threaded rod is used to fix the element in the T-slot. In order to avoid the formation of marks at the bottom of the T-slot, we recommend using fine support elements.

Quick Links

Dispatch by 09/06/25

D: M6

L: 23

H: 4,8

H1: 14

H2: 4,5

SW: 16

N: 10

Clamping force kN: 3,4

S1 (travel): 1

£42.89 ea. Excl VAT £51.47 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£35.17	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Tempered steel, brass hexagonal nut Surface finish:
Heat-treated class 10.9, black oxide finish Note:
The low-profile T-slot cam clamps can be used directly on machine tables or tables with T-slots. The through threaded rod is used to fix the element in the T-slot. In order to avoid the formation of marks at the bottom of the T-slot, we recommend using fine support elements.

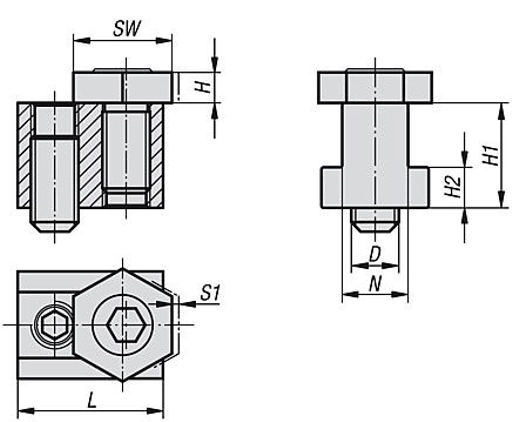

Product Dimensions

D	M6
L	23
H	4,8
H1	14
H2	4,5
SW	16
N	10
Clamping force kN	3,4
S1 (travel)	1
