Knife Edge Cam Clamp. M12x22.5mm. Steel.

Item Code: K0025.16

Knife Edge Cam Clamp. M12x22.5mm. Steel.

Item Code: K0025.16

Knife Edge Cam Clamp. M12x22.5mm. Steel.

Material:
Case hardened steel notched ring,
eccentric screw treated steel Surface finish:
Eccentric screw heat-treated quality class 10.9, black oxide finish; hardened anodized notched ring Note:
The notched ring is fully suitable for fastening rough pieces (mouldings or rough forging). "A" = distance from workpiece to the centre of the thread (clamping screw).

Quick Links

Dispatch by 30/07/25

A: 15

Clamping force kN: 26,7

Component material: QT steel

D: M16

D1: 30,1

H: 12,7

Item: Cam Screw

L: 26,8

S1 (travel): 2,54

SW: 12

Tightening torque max. Nm: 135

£28.51 ea. Excl VAT £34.21 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£26.23	8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

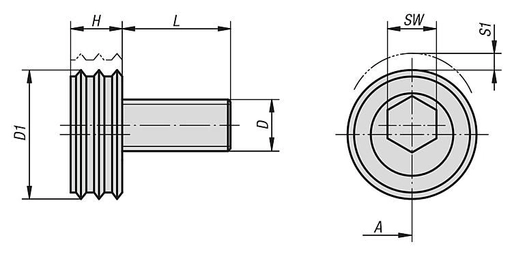

Product Dimensions

A	15
Clamping force kN	26,7
Component material	QT steel
D	M16
D1	30,1
H	12,7
Item	Cam Screw
L	26,8
S1 (travel)	2,54
SW	12
Tightening torque max. Nm	135

Downloads

STP

Knife Edge Cam Clamp. M12x22.5mm. Steel.

Knife Edge Cam Clamp. M12x22.5mm. Steel.
