Item Code: K0023.14

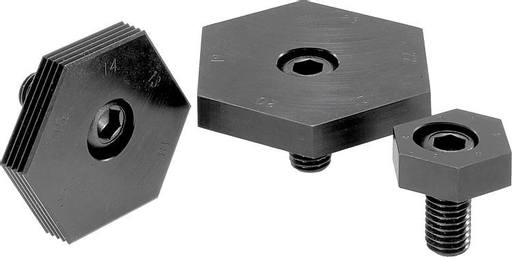

Serrated Fixture Clamp. Smooth Edge. M12.

Item Code: K0023.14

Serrated Fixture Clamp. Smooth Edge. M12.

Material:
Cam screw steel tempered to 10.9.
Hexagon washer mild steel.
Version:
Cam screw black oxidised.
Hexagon washer hardened and black oxidised.
Note:
Theses unequal hexagon fixture clamps can minimise the cost of clamping in fixtures. The clamping range can be altered up to 17 mm from the same tapped hole. Simply rotate the hexagon washer.
The washers are available with smooth edges for machined faces or with serrated edges for rough faces.
View datasheet under downloads for side dimensions

Quick Links

Dispatch by 09/06/25

B
M12
10
22
18
1
7/18, 8/19, 9/20, 10/21, 11/22, 12/23

£79.55  ea. Excl VAT £95.46  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
5 + £74.78 6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Cam screw steel tempered to 10.9.
Hexagon washer mild steel.
Version:
Cam screw black oxidised.
Hexagon washer hardened and black oxidised.
Note:
Theses unequal hexagon fixture clamps can minimise the cost of clamping in fixtures. The clamping range can be altered up to 17 mm from the same tapped hole. Simply rotate the hexagon washer.
The washers are available with smooth edges for machined faces or with serrated edges for rough faces.
View datasheet under downloads for side dimensions

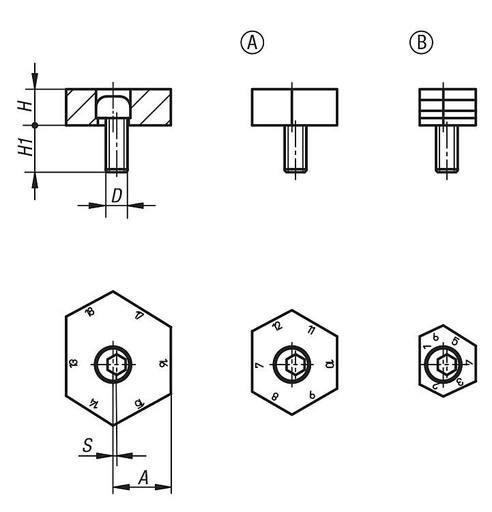

FormB
DM12
H10
H122
Clamping force kN18
S (cam travel)1
Distance A by face No.7/18, 8/19, 9/20, 10/21, 11/22, 12/23
