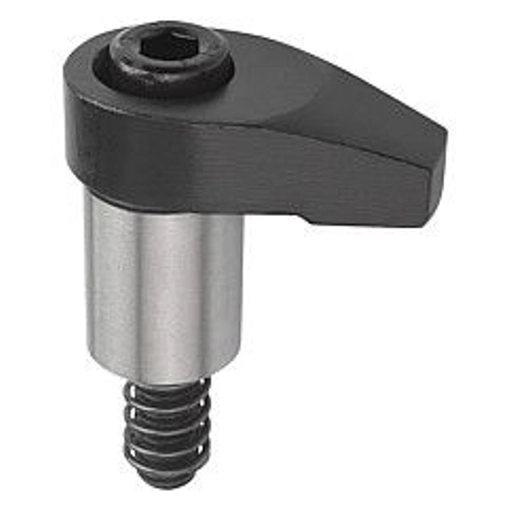

Hook Clamp With Ground Shank. M12x80. 25mm Diameter. 40mm Radius. Carbon Steel.

Item Code: K0014.212040

Hook Clamp With Ground Shank. M12x80. 25mm Diameter. 40mm Radius. Carbon Steel.

Item Code: K0014.212040

Hook Clamp With Ground Shank. M12x80. 25mm Diameter. 40mm Radius. Carbon Steel.

Material:
Tempered, heat-treated steel Surface finish:
Black oxide finish, shaft diameter ground Note:
The stated clamping forces and tightening torques are valid within the stated clamping range (H5).

Quick Links

Dispatch by 09/06/25

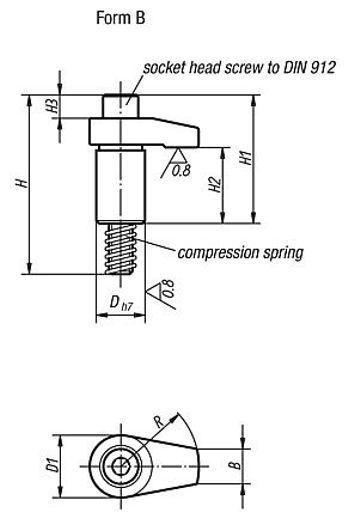

Form: B

D: 25

D1: 32

B: 18

H: 92

H1: 66

H2: 39

H3: 11

R: 40

H4: 12

Tightening torque max. Nm: 58,8

F max. kN: 17,5

H5 max. clamping range: 15

Socket head screw DIN 912: M12x80

£88.48 ea. Excl VAT £106.18 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£75.21	15%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

Form	B
D	25
D1	32
B	18
H	92
H1	66
H2	39
H3	11
R	40
H4	12
Tightening torque max. Nm	58,8
F max. kN	17,5
H5 max. clamping range	15
Socket head screw DIN 912	M12x80
