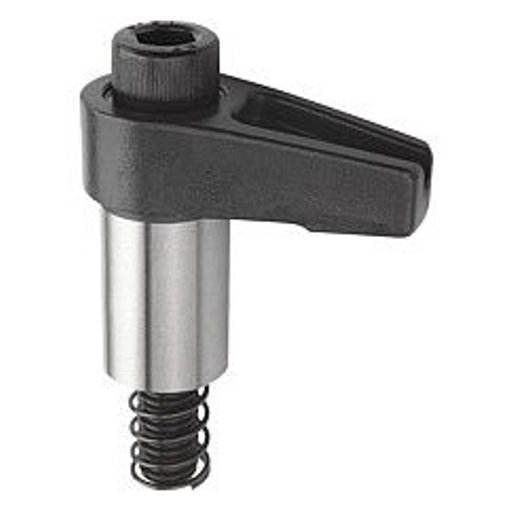

Hook Clamp With Ground Shank. M10x65. 20mm Diameter. 40mm Radius. Carbon Steel.

Item Code: K0014.110040

Hook Clamp With Ground Shank. M10x65. 20mm Diameter. 40mm Radius. Carbon Steel.

Item Code: K0014.110040

Hook Clamp With Ground Shank. M10x65. 20mm Diameter. 40mm Radius. Carbon Steel.

Material:
Tempered, heat-treated steel Surface finish:
Black oxide finish, shaft diameter ground Note:
The stated clamping forces and tightening torques are valid within the stated clamping range (H5).

Quick Links

Dispatch by 30/07/25

B: 12

D: 20

D1: 25

F max. kN: 9,8

Form: A

H: 75

H1: 54

H2: 30

H3: 9

H4: 10

H5 max. clamping range: 12

R: 40

Socket head screw DIN 912: M10x65

Tightening torque max. Nm: 31,4

£69.01 ea. Excl VAT £82.81 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£58.66	15%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

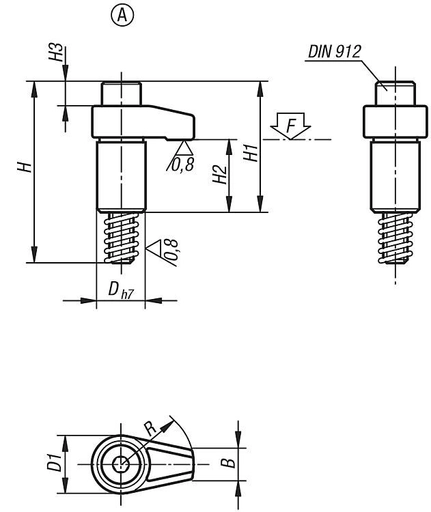

Product Dimensions

B	12
D	20
D1	25
F max. kN	9,8
Form	A
H	75
H1	54
H2	30
H3	9
H4	10
H5 max. clamping range	12
R	40
Socket head screw DIN 912	M10x65
Tightening torque max. Nm	31,4

Downloads

STP

Hook Clamp With Ground Shank. M10x65. 20mm Diameter. 40mm Radius. Carbon Steel.

Hook Clamp With Ground Shank. M10x65. 20mm Diameter. 40mm Radius. Carbon Steel.
