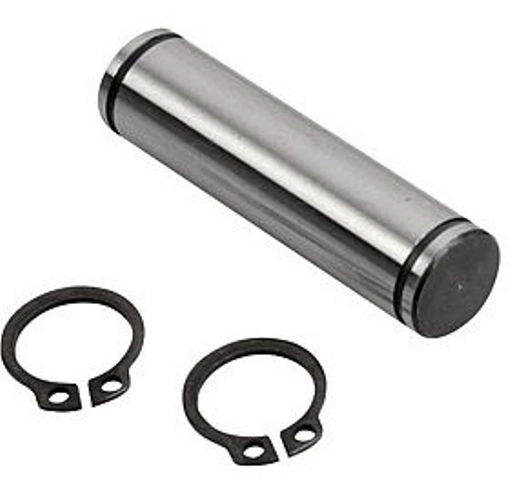

Hinge Pin With Retaining Ring. 8mm Diameter. 30mm Long. Steel.

Item Code: K0007.08

Hinge Pin With Retaining Ring. 8mm Diameter. 30mm Long. Steel.

Item Code: K0007.08

Hinge Pin With Retaining Ring. 8mm Diameter. 30mm Long. Steel.

Material:
Tempered steel 1.0503.07 Surface finish:
Heat-treated. Ground, natural finish Note:
For use with:
Single cam levers, see K0008 and K0009.
Eye bolts K0396.
Fork pieces K0397.
Suitable circlips supplied

Quick Links

29 in stock

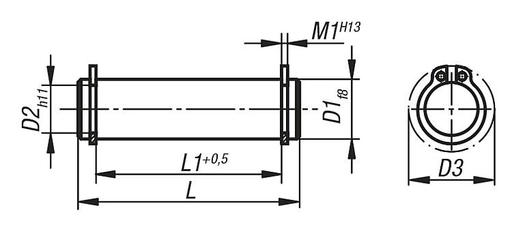

D1: 8

D2: 7,6

D3: 15,2

L: 30

L1: 25

M1: 0,9

N min.: 1,5

£4.21 ea. Excl VAT £5.05 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£3.54	16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D1	8
D2	7,6
D3	15,2
L	30
L1	25
M1	0,9
N min.	1,5

Downloads

STP

Specifications

Diameter	8mm
Length	30mm
