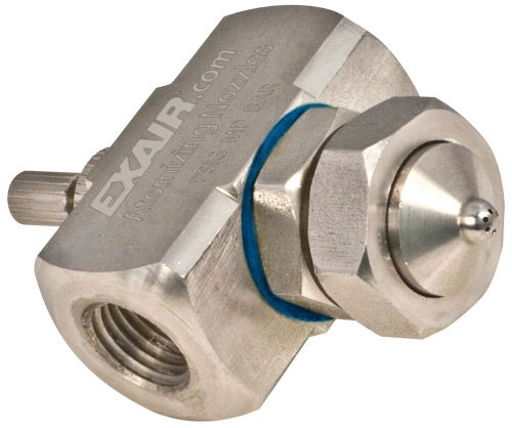

Internal Mix, Wide Angle Round pattern, 3.5 GPH / 13.2 LPH Max

Item Code: AW1010SS

Internal Mix, Wide Angle Round pattern, 3.5 GPH / 13.2 LPH Max

Item Code: AW1010SS

Internal Mix, Wide Angle Round pattern, 3.5 GPH / 13.2 LPH Max

EXAIR's 1/4 FNPT internal mix wide angle round pattern atomizing nozzles are great for covering a broad area. They can be adjusted for a light mist or a heavy soaking spray. They are popular for dust mitigation, humidification, and cooling of products, people or livestock in a broad area. These nozzles are also perfect for applying a coating to parts packed in large containers, for example, misting a container of stamped steel parts with oil to prevent oxidation during shipment. For pressure fed applications not requiring independent air and liquid control.
Connection 1/4" NPT

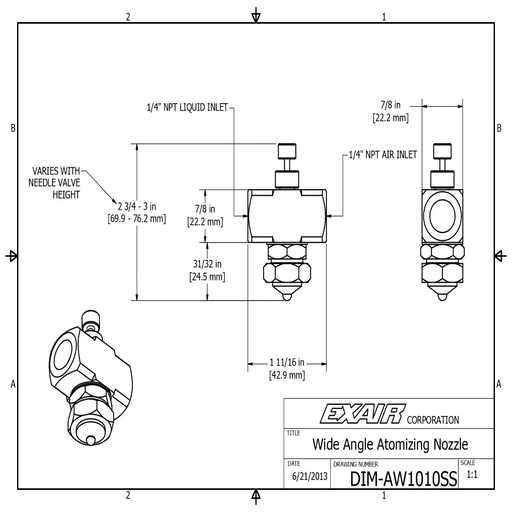

Performance Figures below

Quick Links

Dispatch by 16/06/25

Spray Pattern: Wide Round

Max Liquid Consumption: 0-50 LPH
