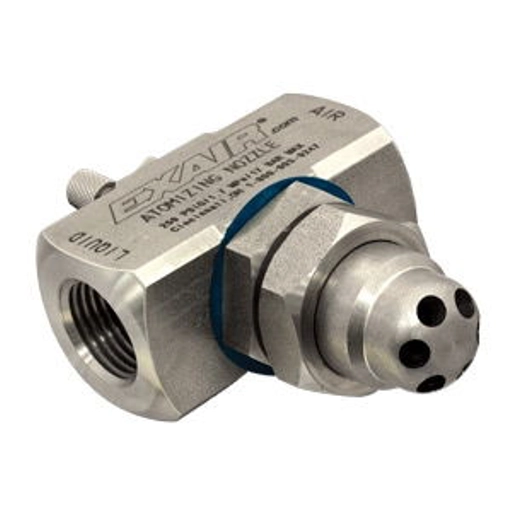

Internal Mix. Wide Angle Round Spray Pattern. 264 GPH / 999 LPH Max. 1/2 NPT Female Threads.

Item Code: AW5030SS

Internal Mix. Wide Angle Round Spray Pattern. 264 GPH / 999 LPH Max. 1/2 NPT Female Threads.

Item Code: AW5030SS

Internal Mix. Wide Angle Round Spray Pattern. 264 GPH / 999 LPH Max. 1/2 NPT Female Threads.

EXAIR's 1/2 FNPT internal mix wide angle round pattern atomizing nozzles are great for covering a broad area. They can be adjusted for a light mist or a heavy soaking spray. They are popular for dust mitigation, humidification, and cooling of products, people or livestock in a broad area. These nozzles are also perfect for applying a coating to parts packed in large containers, for example, misting a container of stamped steel parts with oil to prevent oxidation during shipment. For pressure fed applications not requiring independent air and liquid control.

Connection 1/2" NPT

Performance figures available in downloads

Quick Links

Dispatch by 03/02/26

Max Liquid Consumption: 100+ LPH

Spray Pattern: Wide Round

Thread Size: 1/2" NPT
