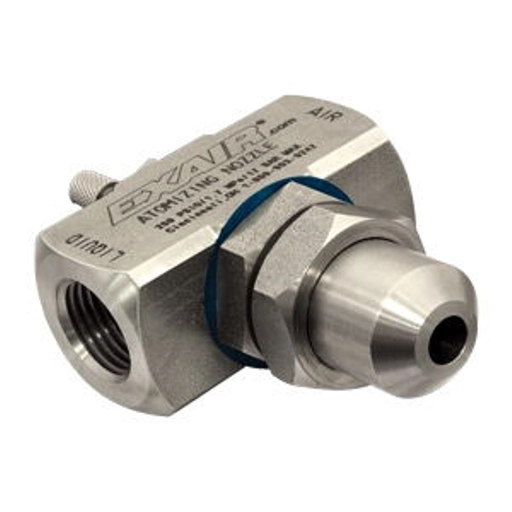

Internal Mix, Narrow Angle Round pattern, 231 GPH / 874 LPH Max, 1/2 NPT female

Item Code: AN5020SS

Internal Mix, Narrow Angle Round pattern, 231 GPH / 874 LPH Max, 1/2 NPT female

Item Code: AN5020SS

Internal Mix, Narrow Angle Round pattern, 231 GPH / 874 LPH Max, 1/2 NPT female

EXAIR's 1/2 FNPT internal mix narrow angle round pattern nozzles are excellent for spraying a concentrated mist of liquid. Because of the versatility of their adjustments, they can apply a heavy coat up close or send a very fine mist over 30 feet away! They are often used for precision application of lubricants during assembly, or marking items as they move through an assembly line. For pressure fed applications not requiring independent air and liquid control.

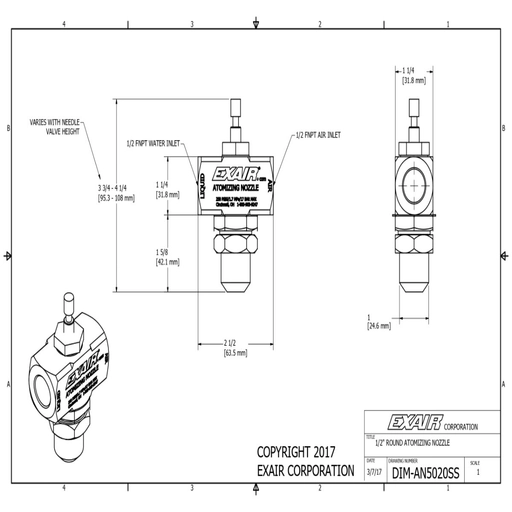

Connection 1/2" NPT

Performance Figures below

Quick Links

Dispatch by 07/07/25

Max Liquid Consumption: 100+ LPH

Spray Pattern: Narrow Round
