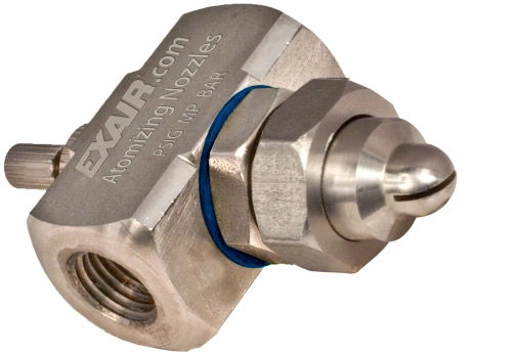

Internal Mix, Flat Fan pattern, 11.0 GPH / 41.6 LPH Max

Item Code: AF1030SS

Internal Mix, Flat Fan pattern, 11.0 GPH / 41.6 LPH Max

Item Code: AF1030SS

Internal Mix, Flat Fan pattern, 11.0 GPH / 41.6 LPH Max

1/4 FNPT internal mix flat fan pattern atomizing nozzles are designed with efficiency in mind. Especially good for vertical or horizontal assembly lines, their broad thin pattern makes efficient use of your expensive liquids. Their output can be adjusted for a very light film or a heavy coat of whatever liquid you are working with. Whether it's applying paint to hanging sheet metal, or using a water mist to cool a laminate web, flat fan atomizing nozzles cover a wide flat area, ideal for products moving on a conveyor. For pressure fed applications not requiring independent air and liquid control.

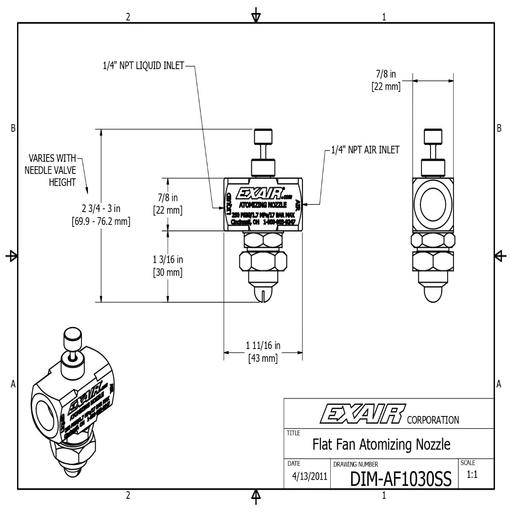

Connection 1/4" NPT

Performance Figures below

Quick Links

Dispatch by 16/06/25

Spray Pattern: Flat Fan

Max Liquid Consumption: 0-50 LPH
