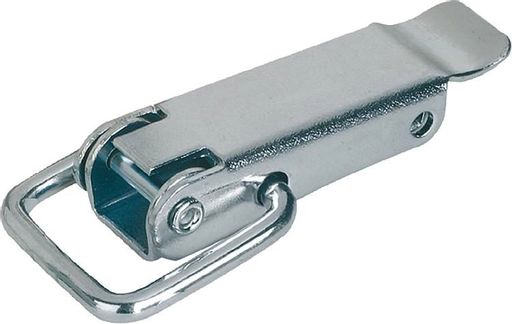

Light Duty Toggle Latch In Steel Form A Length 57mm

Item Code: GH-44.1330571

Light Duty Toggle Latch In Steel Form A Length 57mm

Item Code: GH-44.1330571

Light Duty Toggle Latch In Steel Form A Length 57mm

Order catch plates separately. Part No. GH-44.9136281 or GH-44.9242451

Kipp Part Number K0044.1330571

Material:
Steel

Version:
Galvanized and blue chromed.

Note:
Latches with draw bail for safe holding and locking of hatches, container lids, machine cladding etc. By exceeding the dead centre they resist vibration.
The locking force is applied by drawing on the bail.

The hole D2 can be used to secure against unintentional opening or attaching an official lead seal.

The latches can be screwed down or riveted.

The retaining force F1 applies to the latch, not the catch plate.

Quick Links

50+ in stock

Material: Steel

Version: Latch Only

Length: 57mm

Catch Plate Form B In Steel - £0.75
Catch Plate Form B In Steel

Qty

Catch Plate Form A In Steel - £0.35
Catch Plate Form A In Steel

Qty

£2.44 ea. Excl VAT £2.93 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£2.24	8%
25 - 49	£2.12	13%
50 +	£1.95	20%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Catch Plate Form B In Steel - £0.75
Catch Plate Form B In Steel

Qty

Catch Plate Form A In Steel - £0.35
Catch Plate Form A In Steel

Qty

Quick Links

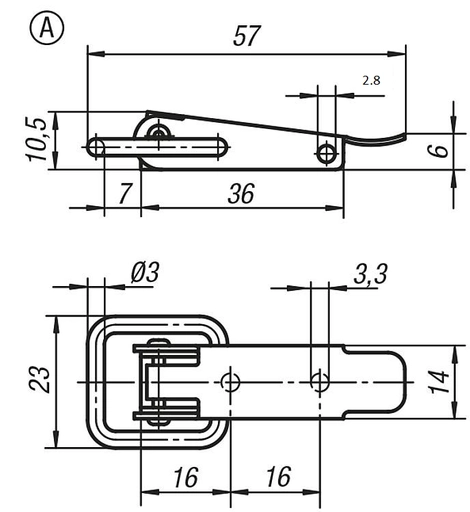

Product Dimensions

Main material	steel
Item	Latch
Version 1	with draw bail
Version 2	fastening holes covered
Surface finish body	galvanised and passivated
D2	2,8
Form	A
Product type	standard
Part Number	GH-44.1330571
Retaining force F1 N	1000

Specifications

Material	Steel
Version	Latch Only
Length	57mm

Downloads

DWG Download

GH-44.1330571 Datasheet

IGS Download

STP Download
