Item Code: GH-22502-BSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 225mm. Holding Force 250daN.

Stainless Steel Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 225mm. Holding Force 250daN.

Item Code: GH-22502-BSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 225mm. Holding Force 250daN.

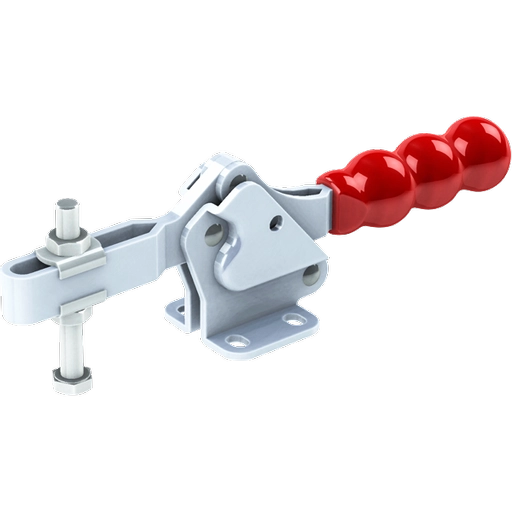

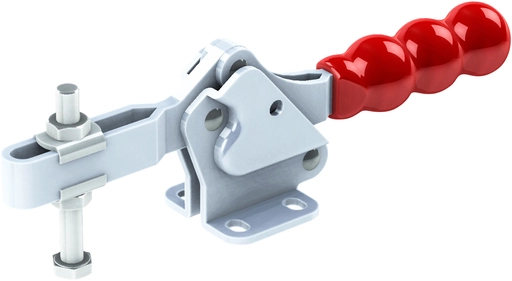

GH-22502-BSS Stainless Steel Horizontal Clamp Flat Base Size 250daN

Holding Force: 250daN
Arm Opens: 90°
Handle Opens: 72°
Weight: 0.44Kg
Spindle Supplied: SA-086512-SS
Flanged Washers Supplied: FW-516-SS

What's In The Bag
GH-22502-BSS Toggle Clamp
SA-086512-SS M8x65 Stainless Steel
FW-516-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

2 in stock

76-100mm
Adjustable
Flat
51-100mm
201-300Kg
M8
Yes
201-250mm
31-40mm

£52.04  ea. Excl VAT £62.45  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length76-100mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force201-300Kg
Spindle SizeM8
Stainless SteelYes
Total Length201-250mm
Underarm Height31-40mm
Download STP

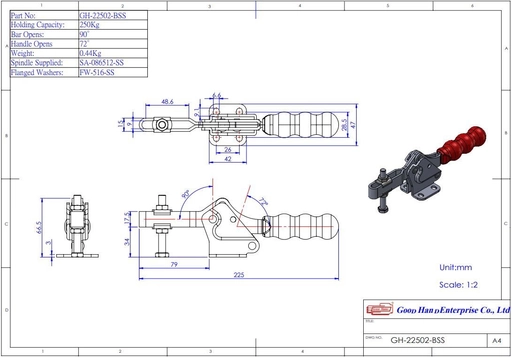

GH-22502-BSS Datasheet
