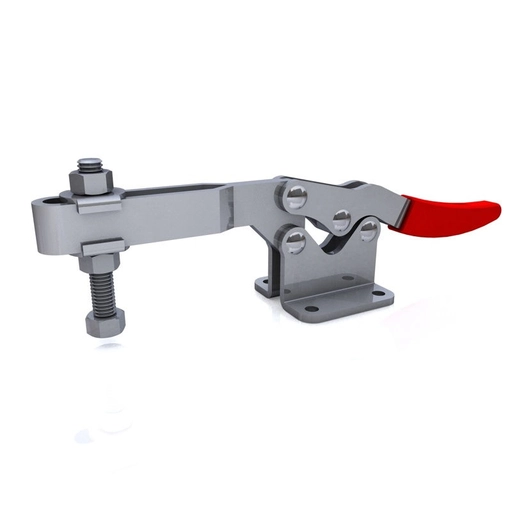

Stainless Steel Horizontal Toggle Clamp. Overall Height 64mm. Overall Length 296mm. Holding Force 340daN.

Item Code: GH-20235-SS

Stainless Steel Horizontal Toggle Clamp. Overall Height 64mm. Overall Length 296mm. Holding Force 340daN.

Item Code: GH-20235-SS

Stainless Steel Horizontal Toggle Clamp. Overall Height 64mm. Overall Length 296mm. Holding Force 340daN.

GH-20235-SS Stainless Steel Horizontal Toggle Clamp with Flat Base Size 340daN

Holding Force: 340daN
Arm Opens: 85°
Handle Opens: 50°
Weight: 0.64Kg
Spindle Supplied: SA-107515-SS
Flanged Washers Supplied: FW-380-SS

What's In The Bag
GH-20235-SS Toggle Clamp
SA-107515-SS M10x75mm Stainless Spindle With Nuts
FW-380-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

21 in stock

Arm Type: Adjustable

Base Type: Flat

Holding Force: 301-400kg

Height: 51-100mm

Total Length: 251+mm

Underarm Height: 41-50mm

Arm Length: 101+mm

Spindle Size: M10

Stainless Steel: Yes

M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5 - £3.78
M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5 - £3.78
M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5

Qty

M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £7.25
M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts - £6.18
M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M10 Neoprene Pad With Threaded Insert - £3.69
M10 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M10 Spindles - £1.35
Neoprene Cap For M10 Spindles

Qty

Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles

Qty

£40.55 ea. Excl VAT £48.66 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£37.31	8%
30 - 49	£35.28	13%
50 +	£33.66	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5 - £3.78
M10 x 50mm Stainless Steel Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5 - £3.78
M10 x 80mm Stainless Steel Spindle 2 Nuts Pitch 1.5

Qty

M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £7.25
M10 x 85mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts - £6.18
M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M10 Neoprene Pad With Threaded Insert - £3.69
M10 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M10 Spindles - £1.35
Neoprene Cap For M10 Spindles

Qty

Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 10mm & 3/8" Spindles

Qty

Quick Links

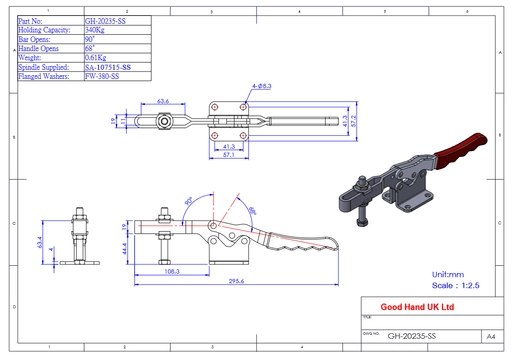

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	301-400kg
Height	51-100mm
Total Length	251+mm
Underarm Height	41-50mm
Arm Length	101+mm
Spindle Size	M10
Stainless Steel	Yes

Downloads

Download STP

GH-20235-SS Datasheet
