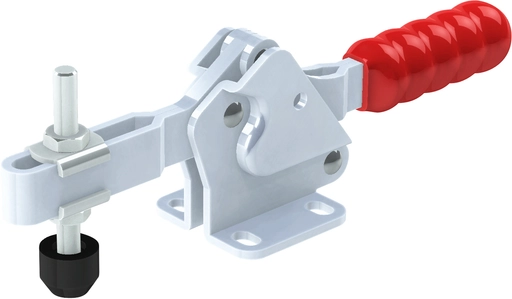

Stainless Steel Horizontal Toggle Clamp. Overall Height 53mm. Overall Length 61mm. Holding Force 150daN.

Item Code: GH-21502-BSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 53mm. Overall Length 61mm. Holding Force 150daN.

GH-21502-BSS-Stainless-Steel-Horizontal-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-21502-BSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 53mm. Overall Length 61mm. Holding Force 150daN.

GH-21502-BSS Stainless Steel Horizontal Toggle Clamp with Flat Base Size 150daN

Holding Force: 150daN
Arm Opens: 94°
Handle Opens: 76°
Weight: 0.23Kg
Spindle Supplied: SA-064010-SS+NC-06 Cap
Flanged Washers Supplied: FW-140-SS

What's In The Bag
GH-21502-BSS Toggle Clamp
SA-064010-SS M6x40mm Stainless Spindle With Nuts
FW-140-SS Stainless Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

Arm Length: 51-75mm

Arm Type: Adjustable

Base Type: Flat

Height: 51-100mm

Holding Force: 101-200kg

Spindle Size: M6

Stainless Steel: Yes

Total Length: 151-200mm

Underarm Height: 21-30mm
