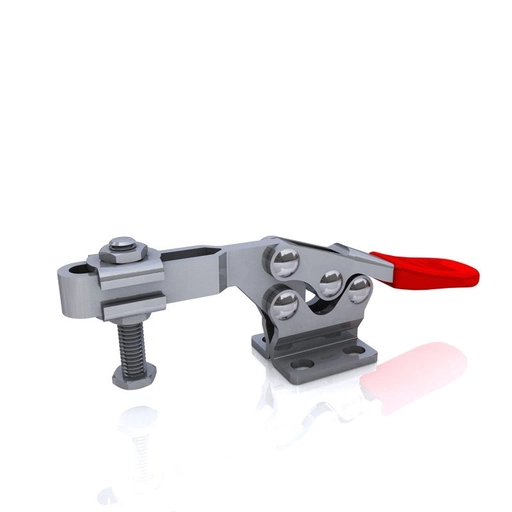

Stainless Steel Horizontal Toggle Clamp. Overall Height 48mm. Overall Length 173mm. Holding Force 227daN.

Item Code: GH-225-DSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 48mm. Overall Length 173mm. Holding Force 227daN.

Item Code: GH-225-DSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 48mm. Overall Length 173mm. Holding Force 227daN.

GH-225-DSS Stainless Steel Horizontal Toggle Clamp with Flat Base Size 227daN

Holding Force: 227daN
Arm Opens: 90°
Handle Opens: 65°
Weight: 0.27Kg
Spindle Supplied: SA-085012-SS
Flanged Washers Supplied: FW-516-SS

What's In The Bag
GH-225-DSS Toggle Clamp
SA-085012-SS M8x50mm Stainless Spindle With Nuts
FW-516-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

Arm Type: Adjustable

Base Type: Flat

Holding Force: 201-300Kg

Height: 0-50mm

Total Length: 151-200mm

Underarm Height: 31-40mm

Arm Length: 51-75mm

Spindle Size: M8

Stainless Steel: Yes

M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £6.32
M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts - £3.54
M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M8 Neoprene Pad With Threaded Insert - £3.23
M8 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M8 Spindles - £1.02
Neoprene Cap For M8 Spindles

Qty

Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles

Qty

£27.46 ea. Excl VAT £32.95 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£25.26	8%
30 - 49	£23.89	13%
50 +	£22.79	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 50mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25 - £2.96
M8 x 60mm Stainless Steel Spindle 2 Nuts Pitch 1.25

Qty

M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £6.32
M8 x 64mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts - £3.54
M8 x 65mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M8 Neoprene Pad With Threaded Insert - £3.23
M8 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M8 Spindles - £1.02
Neoprene Cap For M8 Spindles

Qty

Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles - £1.48
Pair Of Stainless Steel Flanged Washer For 8mm & 5/16" Spindles

Qty

Quick Links

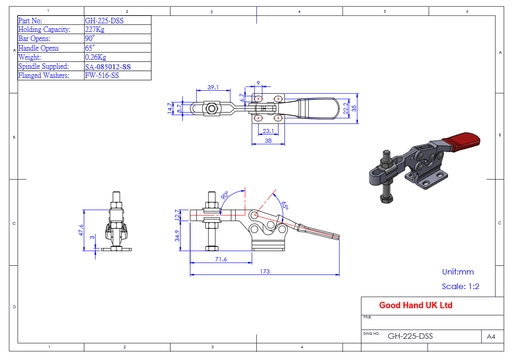

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	201-300Kg
Height	0-50mm
Total Length	151-200mm
Underarm Height	31-40mm
Arm Length	51-75mm
Spindle Size	M8
Stainless Steel	Yes

Downloads

Download STP

GH-225-DSS Datasheet

Stainless Steel Horizontal Toggle Clamp. Overall Height 48mm. Overall Length 173mm. Holding Force 227daN.
