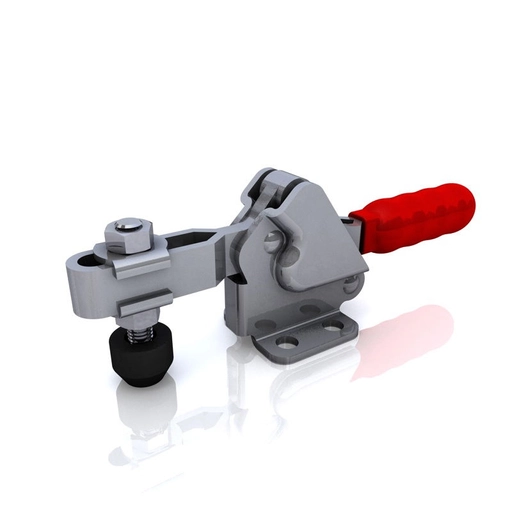

Stainless Steel Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.

Item Code: GH-20752-BSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.

GH-20752-BSS-Stainless-Steel-Horizontal-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-20752-BSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.

GH-20752-BSS Stainless Steel Horizontal Toggle Clamp with Flat Base Size 75daN

Holding Force: 75daN
Arm Opens: 94°
Handle Opens: 76°
Weight: 0.10Kg
Spindle Supplied: SA-054008-SS+NC-05 Cap. Flanged Washers Supplied: FW-100-SS

What's In The Bag
GH-20752-BSS Toggle Clamp
SA-054008-SS M5x40mm Stainless Spindle With Nuts
FW-100-SS Stainless Flanged Washers
NC-05 Neoprene Cap

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

Arm Type: Adjustable

Base Type: Flat

Holding Force: 0-100Kg

Height: 0-50mm

Total Length: 101-150mm

Underarm Height: 0-20mm

Arm Length: 26-50mm

Spindle Size: M5

Stainless Steel: Yes

M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8

Qty

M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8 - £2.02
M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8

Qty

M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8

Qty

M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £4.49
M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts - £2.55
M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M5 Neoprene Pad - £2.60
M5 Neoprene Pad

Qty

Neoprene Cap For M5 Spindles - £0.76
Neoprene Cap For M5 Spindles

Qty

Side Mount Bracket For Toggle Clamps Small - £3.78
Side Mount Bracket For Toggle Clamps Small

Qty

Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles - £1.19
Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles

Qty

£19.93 ea. Excl VAT £23.92 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£18.34	8%
30 - 49	£17.34	13%
50 +	£16.54	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 30mm Stainless Steel Spindle 2 Nuts Pitch 0.8

Qty

M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8 - £2.02
M5 x 35mm Stainless Steel Spindle With 2 Nuts Pitch 0.8

Qty

M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8 - £2.02
M5 x 40mm Stainless Steel Spindle 2 Nuts Pitch 0.8

Qty

M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts - £4.49
M5 x 42mm Neoprene Tipped Stainless Steel Spindle 2 Nuts

Qty

M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts - £2.55
M5 x 35mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M5 Neoprene Pad - £2.60
M5 Neoprene Pad

Qty

Neoprene Cap For M5 Spindles - £0.76
Neoprene Cap For M5 Spindles

Qty

Side Mount Bracket For Toggle Clamps Small - £3.78
Side Mount Bracket For Toggle Clamps Small

Qty

Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles - £1.19
Pair Of Stainless Steel Flanged Washer For 5mm & #10 Spindles

Qty

Quick Links

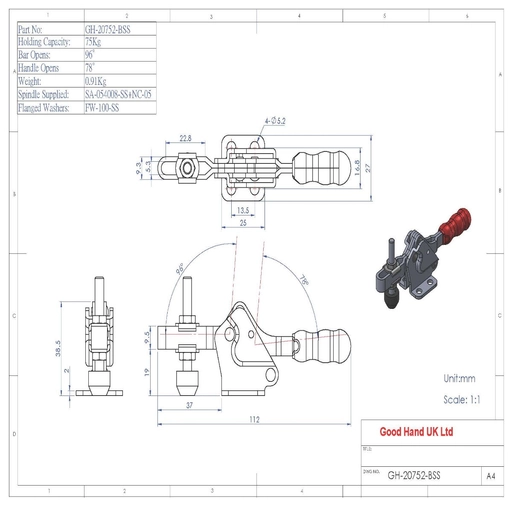

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	0-100Kg
Height	0-50mm
Total Length	101-150mm
Underarm Height	0-20mm
Arm Length	26-50mm
Spindle Size	M5
Stainless Steel	Yes

Downloads

Download STP

GH-20752-BSS Datasheet

Stainless Steel Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.

Stainless Steel Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.
