Item Code: GH-201-BSS

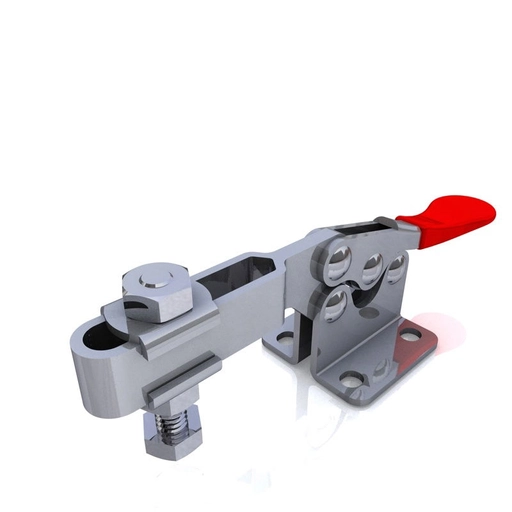

Stainless Steel Horizontal Toggle Clamp. Overall Height 38mm. Overall Length 144mm. Holding Force 90daN.

Stainless Steel Horizontal Toggle Clamp. Overall Height 38mm. Overall Length 144mm. Holding Force 90daN.

Item Code: GH-201-BSS

Stainless Steel Horizontal Toggle Clamp. Overall Height 38mm. Overall Length 144mm. Holding Force 90daN.

GH-201-BSS Stainless Steel Horizontal Toggle Clamp with Flat Base Size 90daN

Holding Force: 90daN
Arm Opens: 85°
Handle Opens: 60°
Weight: 0.13Kg
Spindle Supplied: SA-064010-SS
Flanged Washers Supplied: FW-141-SS

What's In The Bag
GH-201-BSS Toggle Clamp
SA-064010-SS M6x40mm Stainless Spindle With Nuts
FW-141-SS Stainless Flanged Washers

Material
Clamp: Stainless Steel
Spindle: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

51-75mm
Adjustable
Flat
0-50mm
0-100Kg
M6
Yes
101-150mm
21-30mm
Qty
Qty
Qty
Qty
Qty
Qty

£21.10  ea. Excl VAT £25.32  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height0-50mm
Holding Force0-100Kg
Spindle SizeM6
Stainless SteelYes
Total Length101-150mm
Underarm Height21-30mm
Download STP

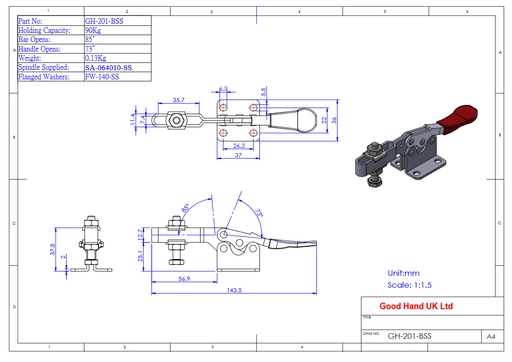

GH-201-BSS Datasheet
