Horizontal Toggle Clamp With Safety Lock. Overall Height 76mm. Overall Length 194mm. Holding Force 130daN. Stainless Steel.

Item Code: K0661.106103

Horizontal Toggle Clamp With Safety Lock. Overall Height 76mm. Overall Length 194mm. Holding Force 130daN. Stainless Steel.

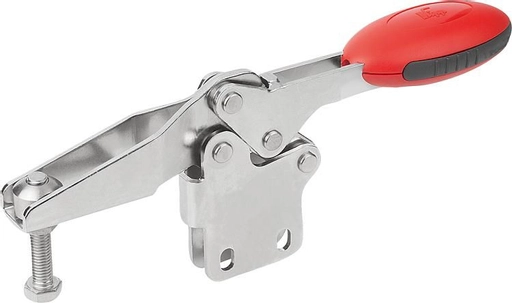

Horizontal-Toggle-clamp-WIth-Lock-Stainless-Steel_1200x1200.jpg?

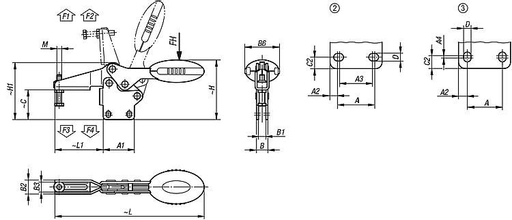

Horizontal-Toggle-clamp-WIth-Lock-Stainless-Steel-Drawing_1200x1200.jpg?

Item Code: K0661.106103

Horizontal Toggle Clamp With Safety Lock. Overall Height 76mm. Overall Length 194mm. Holding Force 130daN. Stainless Steel.

K0661.106103 Horizontal Toggle Clamp In Stainless Steel With Straight Base, Slotted Arm, and Safety Lock. Size 130daN

Holding Force: 130daN
Arm Opens: 86°
Handle Opens: 67°
Weight: 0.349Kg
Spindle Size: M6x35mm

What's In The Bag
K0661.106103 Toggle Clamp
M6x35 Spindle with nuts

Material
Clamp: Stainless Steel
Handle: Polyamide
Spindle: Stainless Steel.

Quick Links

Dispatch by 16/06/25

Base Type: Straight

Holding Force: 101-200kg

Height: 51-100mm

Total Length: 151-200mm

Underarm Height: 31-40mm

Arm Length: 51-75mm

Spindle Size: M6

Safety Lock: Yes

Stainless Steel: Yes

£82.81 ea. Excl VAT £99.37 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£72.87	12%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Part No	K0661.106103
Main material	stainless steel
Item	Toggle Clamp
Version 1	with safety lock
A	26
B	14,1
D	5,5
H	75,2
H1	71
C	36,9
Version 2	vertical foot
B1	9,1
Component material	polyamide
Surface finish body	bright
A1	39
B2	17,5
B3	12,5
A2	6,5
Component colour	red RAL 3020
A4	2,5
B6	53,4
Part Number	K0661.106103
Grip type toggle clamp	horizontal
C2	8

Specifications

Base Type	Straight
Holding Force	101-200kg
Height	51-100mm
Total Length	151-200mm
Underarm Height	31-40mm
Arm Length	51-75mm
Spindle Size	M6
Safety Lock	Yes
Stainless Steel	Yes
