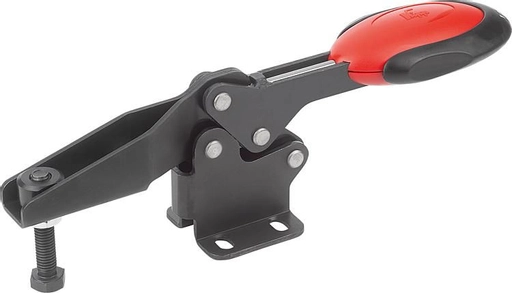

Horizontal Toggle Clamp With Safety Lock. Overall Height 64mm. Overall Length 194mm. Holding Force 130daN. Steel.

Item Code: K0660.006103

Horizontal Toggle Clamp With Safety Lock. Overall Height 64mm. Overall Length 194mm. Holding Force 130daN. Steel.

Hozizontal-Toggle-clamp-With-Lock_1200x1200.jpg?

Hozizontal-Toggle-clamp-WIth-Lock-Drawing_1200x1200.jpg?

Item Code: K0660.006103

Horizontal Toggle Clamp With Safety Lock. Overall Height 64mm. Overall Length 194mm. Holding Force 130daN. Steel.

K0660.006103 Horizontal Toggle Clamp With Flat Base, Slotted Arm, and Safety Lock. Size 130daN

Holding Force: 130daN
Arm Opens: 86°
Handle Opens: 67°
Weight: 0.342Kg
Spindle Size: M6x35mm

What's In The Bag
K0660.006103 Toggle Clamp
M6x35 Spindle with nuts

Material
Clamp: Steel
Handle: Polyamide
Spindle: Steel.

Quick Links

Dispatch by 16/06/25

Base Type: Flat

Holding Force: 101-200kg

Height: 51-100mm

Total Length: 151-200mm

Underarm Height: 21-30mm

Arm Length: 51-75mm

Spindle Size: M6

Safety Lock: Yes

£41.41 ea. Excl VAT £49.69 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£35.61	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

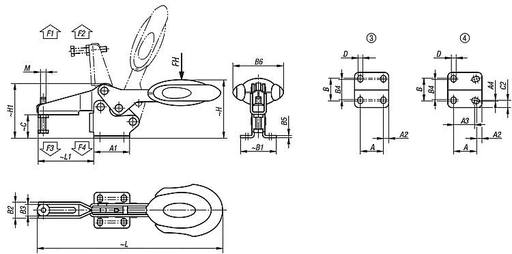

Product Dimensions

Part No	K0660.006103
Main material	steel
Item	Toggle Clamp
Version 1	with safety lock
A	26
B	28
D	5,5
H	63,7
H1	59,6
C	25,4
Version 2	horizontal foot
B1	39
Component material	polyamide
Surface finish body	nitrocarburized and oxidized
A1	39
B2	17,5
B3	12,5
B4	23
B5	2,5
A2	6,5
Component colour	red RAL 3020
B6	53,4
Part Number	K0660.006103
Grip type toggle clamp	horizontal

Specifications

Base Type	Flat
Holding Force	101-200kg
Height	51-100mm
Total Length	151-200mm
Underarm Height	21-30mm
Arm Length	51-75mm
Spindle Size	M6
Safety Lock	Yes

Downloads

Download STP
