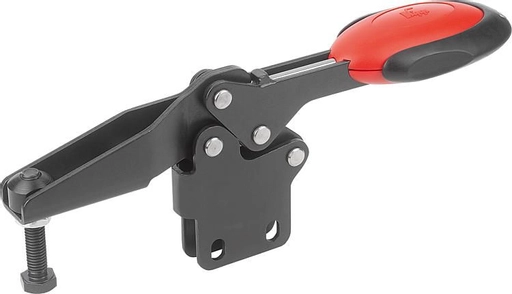

Horizontal Toggle Clamp With Safety Lock. Overall Height 115mm. Overall Length 286mm. Holding Force 220daN. Steel.

Item Code: K0661.010103

Horizontal Toggle Clamp With Safety Lock. Overall Height 115mm. Overall Length 286mm. Holding Force 220daN. Steel.

Hozizontal-Toggle-clamp-WIth-Lock_1200x1200.jpg?

Horizontal-Toggle-clamp-WIth-Lock-Drawing_1200x1200.jpg?

Item Code: K0661.010103

Horizontal Toggle Clamp With Safety Lock. Overall Height 115mm. Overall Length 286mm. Holding Force 220daN. Steel.

K0661.010103 Horizontal Toggle Clamp With Straight Base, Slotted Arm, and Safety Lock. Size 220daN

Holding Force: 220daN
Arm Opens: 90°
Handle Opens: 71°
Weight: 0.844Kg
Spindle Size: M10x55mm

What's In The Bag
K0661.010103 Toggle Clamp
M10x55 Spindle with nuts

Material
Clamp: Steel
Handle: Polyamide
Spindle: Steel.

Quick Links

Dispatch by 16/06/25

Base Type: Straight

Holding Force: 201-300Kg

Height: 101-150mm

Total Length: 251+mm

Underarm Height: 51+mm

Arm Length: 101+mm

Spindle Size: M10

Safety Lock: Yes

£65.74 ea. Excl VAT £78.89 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£57.85	12%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

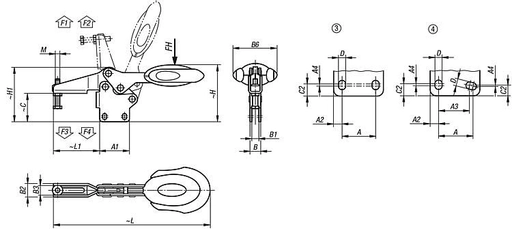

Product Dimensions

Part No	K0661.010103
Main material	steel
Item	Toggle Clamp
Version 1	with safety lock
A	41,5
B	16,2
D	8,8
H	114,3
H1	107,5
C	59,6
Version 2	vertical foot
B1	9,2
Component material	polyamide
Surface finish body	nitrocarburized and oxidized
A1	59
B2	26
B3	19
A2	9
Component colour	red RAL 3020
A4	2
B6	56,5
Part Number	K0661.010103
Grip type toggle clamp	horizontal
C2	10

Specifications

Base Type	Straight
Holding Force	201-300Kg
Height	101-150mm
Total Length	251+mm
Underarm Height	51+mm
Arm Length	101+mm
Spindle Size	M10
Safety Lock	Yes

Downloads

Download STP
