Item Code: GH-23502-B

Horizontal Toggle Clamp. Overall Height 91mm. Overall Length 277mm. Holding Force 350daN.

Item Code: GH-23502-B

Horizontal Toggle Clamp. Overall Height 91mm. Overall Length 277mm. Holding Force 350daN.

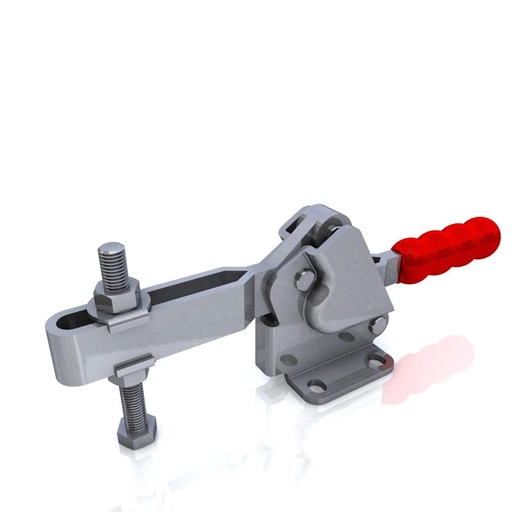

GH-23502-B Horizontal Toggle Clamp Flat Base Slotted Arm Size 350daN

Holding Force: 350daN
Arm Opens: 94°
Handle Opens: 76°
Weight: 0.5Kg
Spindle Supplied: SA-107515
Flanged Washers Supplied: FW-380

What's In The Bag
GH-23502-B Toggle Clamp
SA-107515 M10x75mm Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
301-400kg
51-100mm
251+mm
41-50mm
101+mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£24.52  ea. Excl VAT £29.42  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £22.56 8%
30 - 49 £21.33 13%
50 + £20.35 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force301-400kg
Height51-100mm
Total Length251+mm
Underarm Height41-50mm
Arm Length101+mm
Spindle SizeM10
Download STP
GH-23502-B Datasheet
