Item Code: GH-25383

Horizontal Toggle Clamp. Overall Height 91mm. Overall Length 253mm. Holding Force 280daN.

Item Code: GH-25383

Horizontal Toggle Clamp. Overall Height 91mm. Overall Length 253mm. Holding Force 280daN.

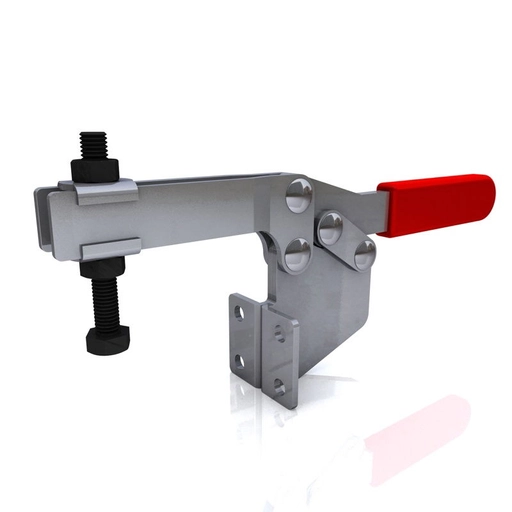

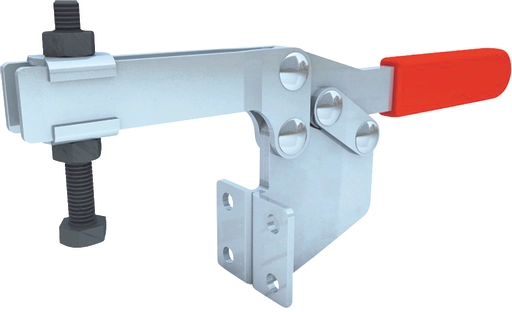

GH-25383 Horizontal Toggle Clamp Side Mounting Size 280daN

Holding Force: 280daN
Arm Opens: 80°
Handle Opens: 80°
Weight: 0.44Kg
Spindle Supplied: SA-086512
Flanged Washers Supplied: FW-516

What's In The Bag
GH-25383 Toggle Clamp
SA-086512 M8x65mm Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

3 in stock

Adjustable
Side Mounted
201-300Kg
51-100mm
251+mm
51+mm
76-100mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£22.41  ea. Excl VAT £26.89  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £20.62 8%
30 - 49 £19.50 13%
50 + £18.60 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeSide Mounted
Holding Force201-300Kg
Height51-100mm
Total Length251+mm
Underarm Height51+mm
Arm Length76-100mm
Spindle SizeM8
Download STP

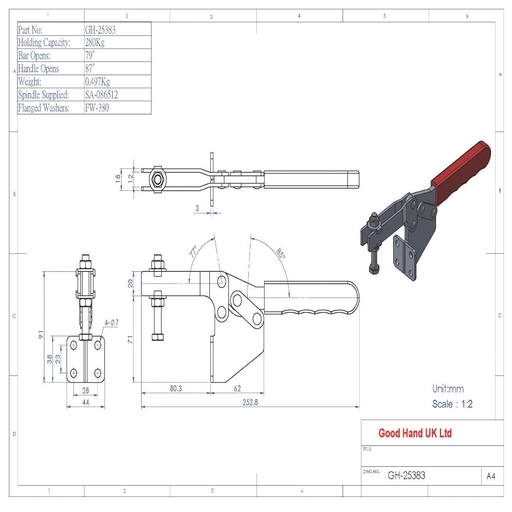

GH-25383 Datasheet
