Home
Toggle Clamps
Back to Horizontal Toggle Clamps

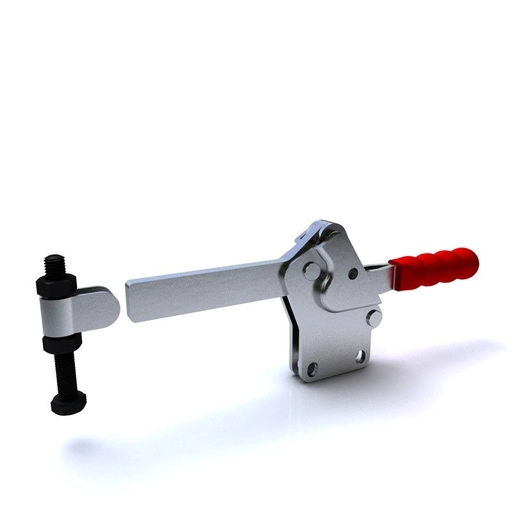

Horizontal Toggle Clamp. Overall Height 87mm. Overall Length 170mm. Holding Force 350daN.

Item Code: GH-23501-A

Horizontal Toggle Clamp. Overall Height 87mm. Overall Length 170mm. Holding Force 350daN.

GH-23501-A-Straight-Base-Horizontal-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-23501-A

Horizontal Toggle Clamp. Overall Height 87mm. Overall Length 170mm. Holding Force 350daN.

GH-23501-A Horizontal Toggle Clamp Straight Base Solid Arm Size 350daN

Holding Force: 350daN
Arm Opens: 94°
Handle Opens: 76°
Weight: 0.97Kg
Spindle Set Supplied: SA-108015 + BR-380

What's In The Bag
GH-23501-A Toggle Clamp
SA-108015 M10x80mm Spindle With Nuts
BR-380 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

43 in stock

£25.96 ea. Excl VAT £31.15 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£23.88	8%
30 - 49	£22.59	13%
50 +	£21.55	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

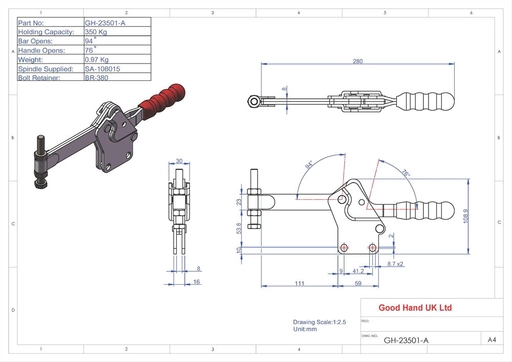

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Straight
Holding Force	301-400kg
Height	101-150mm
Total Length	151-200mm
Underarm Height	51+mm
Arm Length	101+mm
Spindle Size	M10

Downloads

Download STP

GH-23501-A Datasheet

Horizontal Toggle Clamp. Overall Height 87mm. Overall Length 170mm. Holding Force 350daN.

Horizontal Toggle Clamp. Overall Height 87mm. Overall Length 170mm. Holding Force 350daN.
