Item Code: GH-23501-B

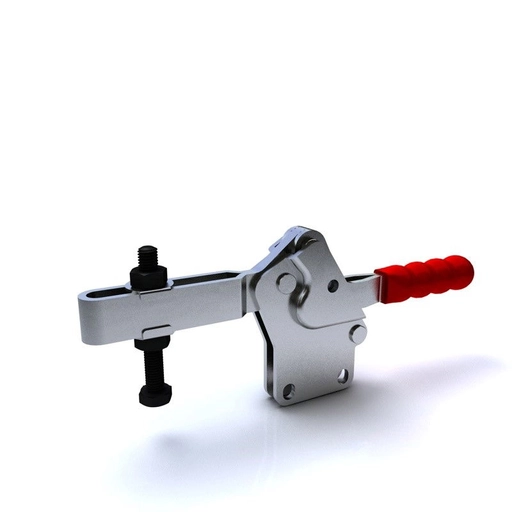

Horizontal Toggle Clamp. Overall Height 87mm. Overall Length 167mm. Holding Force 350daN.

Item Code: GH-23501-B

Horizontal Toggle Clamp. Overall Height 87mm. Overall Length 167mm. Holding Force 350daN.

GH-23501-B Horizontal Toggle Clamp Straight Base Slotted Arm Size 350daN

Holding Force: 350daN
Arm Opens: 94°
Handle Opens: 76°
Weight: 0.95Kg
Spindle Set Supplied: SA-108015 + FW-380

What's In The Bag
GH-23501-B Toggle Clamp
SA-108015 M10x80mm Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Straight
301-400kg
101-150mm
151-200mm
51+mm
101+mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£25.73  ea. Excl VAT £30.88  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £23.67 8%
30 - 49 £22.39 13%
50 + £21.36 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force301-400kg
Height101-150mm
Total Length151-200mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM10
Download STP

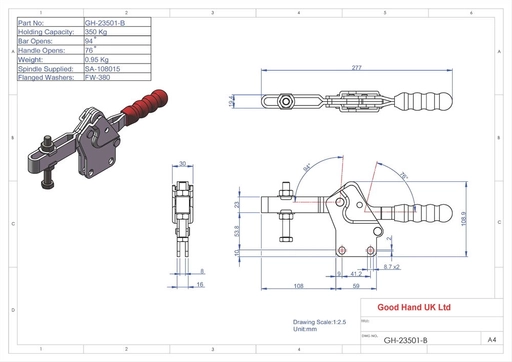

GH-23501-B Datasheet
