Item Code: GH-24501-B

Horizontal Toggle Clamp. Overall Height 80mm. Overall Length 194mm. Holding Force 450daN.

Item Code: GH-24501-B

Horizontal Toggle Clamp. Overall Height 80mm. Overall Length 194mm. Holding Force 450daN.

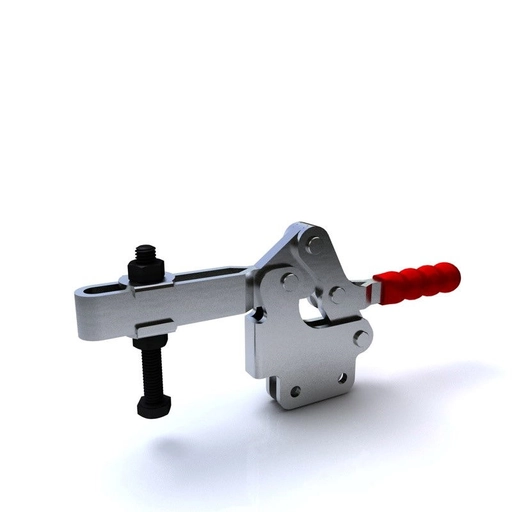

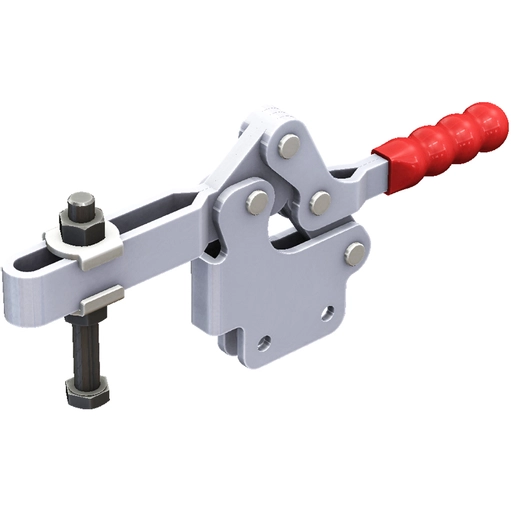

GH-24501-B Horizontal Toggle Clamp Straight Base Slotted Arm Size 450daN

Holding Force: 450daN
Arm Opens: 94°
Handle Opens: 80°
Weight: 1.46Kg
Spindle Set Supplied: SA-121017 + FW-120

What's In The Bag
GH-24501-B Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
FW-120 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

11 in stock

Adjustable
Straight
401+kg
101-150mm
151-200mm
51+mm
101+mm
M12
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£39.26  ea. Excl VAT £47.11  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £36.12 8%
30 - 49 £34.16 13%
50 + £32.59 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force401+kg
Height101-150mm
Total Length151-200mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM12
Download STP

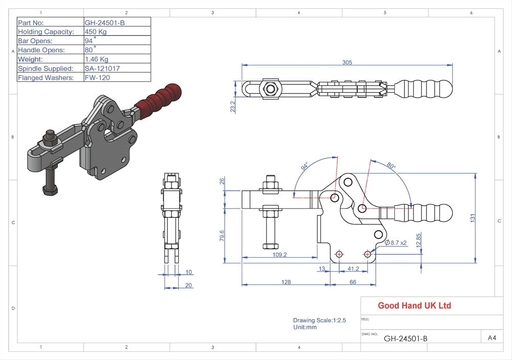

GH-24501-B Datasheet
