Item Code: GH-201-BSM

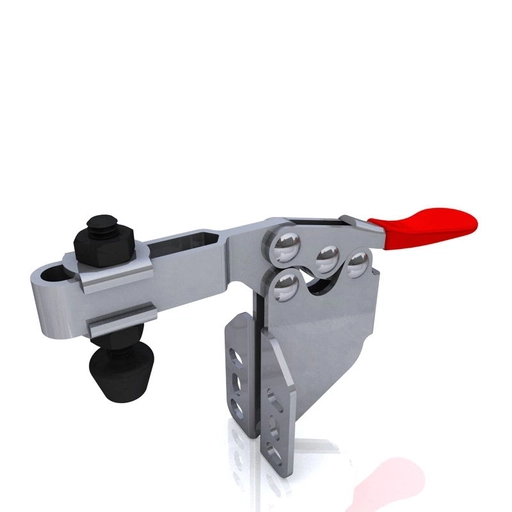

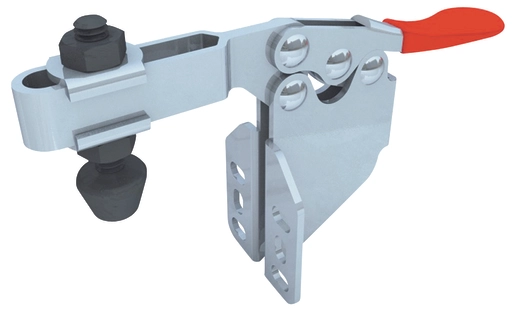

Horizontal Toggle Clamp. Overall Height 75mm. Overall Length 144mm. Holding Force 90daN.

Item Code: GH-201-BSM

Horizontal Toggle Clamp. Overall Height 75mm. Overall Length 144mm. Holding Force 90daN.

GH-201-BSM Horizontal Toggle Clamp Side Mounting Size 90daN

Holding Force: 90daN
Arm Opens: 85°
Handle Opens: 60°
Weight: 0.163Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141

What's In The Bag
GH-201-BSM Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Side Mounted
0-100Kg
51-100mm
101-150mm
51+mm
51-75mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£12.70  ea. Excl VAT £15.24  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.68 8%
30 - 49 £11.05 13%
50 + £10.54 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeSide Mounted
Holding Force0-100Kg
Height51-100mm
Total Length101-150mm
Underarm Height51+mm
Arm Length51-75mm
Spindle SizeM6
Download STP

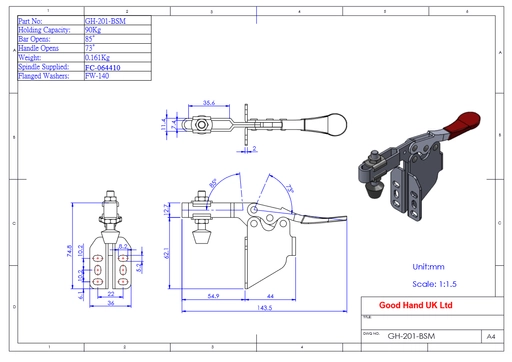

GH-201-BSM Datasheet
