Item Code: GH-22501-B

Horizontal Toggle Clamp. Overall Height 69mm. Overall Length 121mm. Holding Force 250daN.

Item Code: GH-22501-B

Horizontal Toggle Clamp. Overall Height 69mm. Overall Length 121mm. Holding Force 250daN.

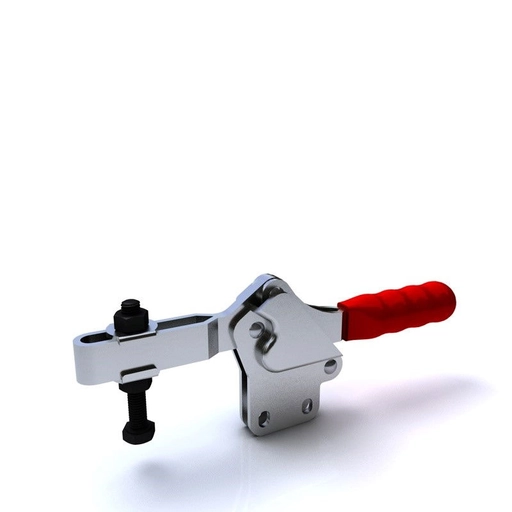

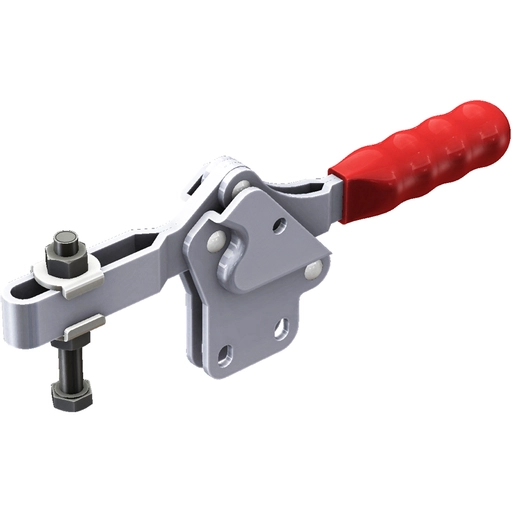

GH-22501-B Horizontal Toggle Clamp Straight Base Slotted Arm Size 250daN

Holding Force: 250daN
Arm Opens: 90°
Handle Opens: 72°
Weight: 0.46Kg
Spindle Set Supplied: SA-086012
Flanged Washers Supplied: FW-516

What's In The Bag
GH-22501-B Toggle Clamp
SA-086012 M8x60mm Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

76-100mm
Adjustable
Straight
51-100mm
201-300Kg
M8
201-250mm
31-40mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£19.43  ea. Excl VAT £23.32  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £17.88 8%
30 - 49 £16.90 13%
50 + £16.13 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length76-100mm
Arm TypeAdjustable
Base TypeStraight
Height51-100mm
Holding Force201-300Kg
Spindle SizeM8
Total Length201-250mm
Underarm Height31-40mm
Download STP

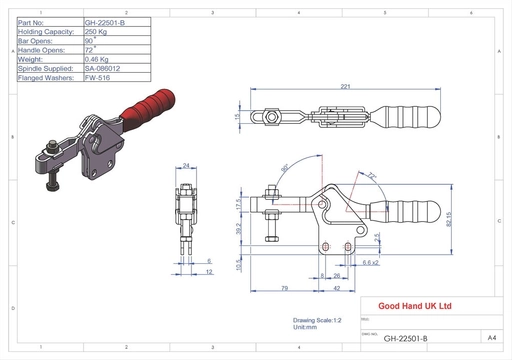

GH-22501-B Datasheet
