Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 124mm. Holding Force 250daN.

Item Code: GH-22502-A

Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 124mm. Holding Force 250daN.

GH-22502-A-Horizontal-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-22502-A

Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 124mm. Holding Force 250daN.

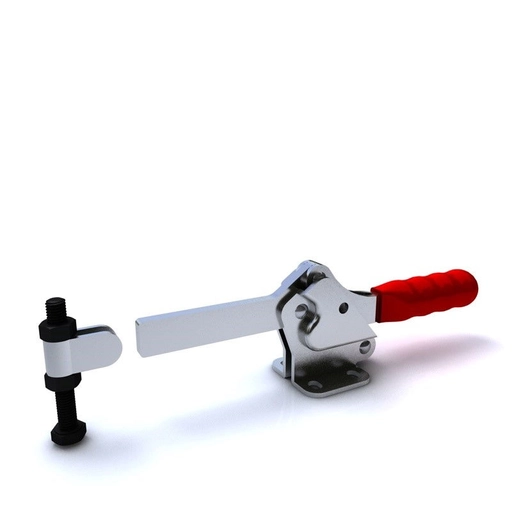

GH-22502-A Horizontal Toggle Clamp Flat Base Solid Arm Size 250daN

Holding Force: 250daN
Arm Opens: 90°
Handle Opens: 72°
Weight: 0.47Kg
Spindle Set Supplied: SA-086012
Bolt Retainer Supplied: BR-516

What's In The Bag
GH-22502-A Toggle Clamp
SA-086012 M8x60mm Spindle With Nuts
BR-516 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Bolt Retainer Supplied But Not Attached, Customer To Assemble

Quick Links

50+ in stock

£18.87 ea. Excl VAT £22.64 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£17.36	8%
30 - 49	£16.42	13%
50 +	£15.66	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

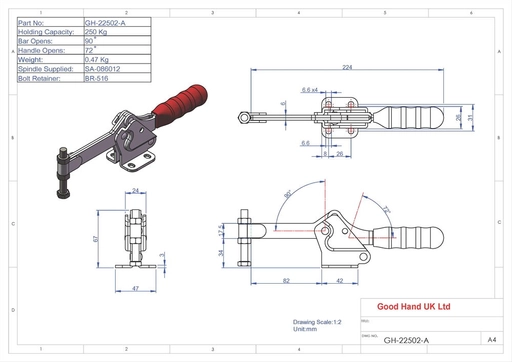

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Flat
Holding Force	201-300Kg
Height	51-100mm
Total Length	101-150mm
Underarm Height	31-40mm
Arm Length	76-100mm
Spindle Size	M8

Downloads

Download STP

GH-22502-A Datasheet

Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 124mm. Holding Force 250daN.

Horizontal Toggle Clamp. Overall Height 67mm. Overall Length 124mm. Holding Force 250daN.
