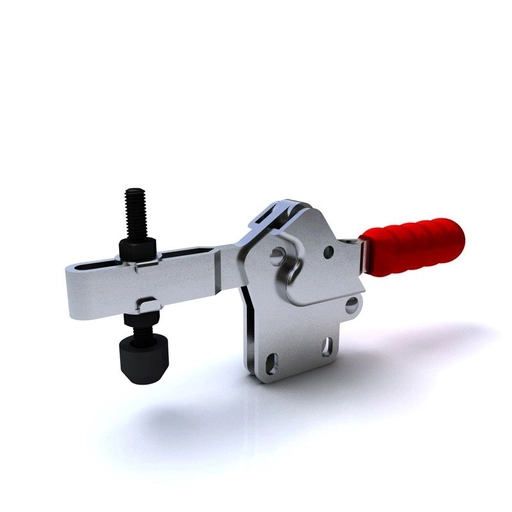

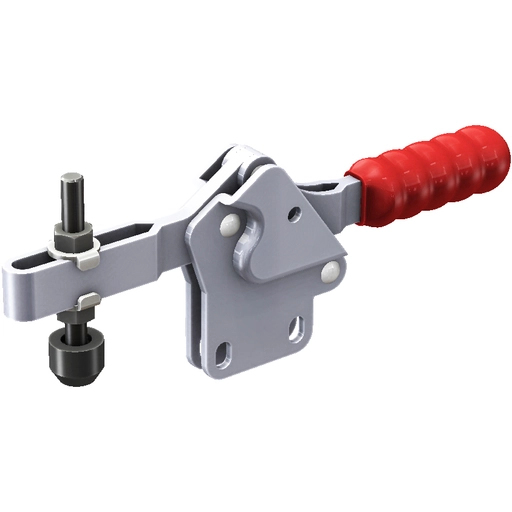

Horizontal Toggle Clamp. Overall Height 65mm. Overall Length 99mm. Holding Force 150daN.

Item Code: GH-21501-B

Horizontal Toggle Clamp. Overall Height 65mm. Overall Length 99mm. Holding Force 150daN.

GH-21501-B-Straight-Base-Horizontal-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-21501-B

Horizontal Toggle Clamp. Overall Height 65mm. Overall Length 99mm. Holding Force 150daN.

GH-21501-B Horizontal Toggle Clamp Straight Base Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 93°
Handle Opens: 76°
Weight: 0.245Kg
Spindle Set Supplied: SA-065010 + NC-06 Flanged Washers Supplied: FW-140

What's In The Bag
GH-21501-B Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
FW-140 Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

£15.01 ea. Excl VAT £18.01 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£13.81	8%
30 - 49	£13.06	13%
50 +	£12.46	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

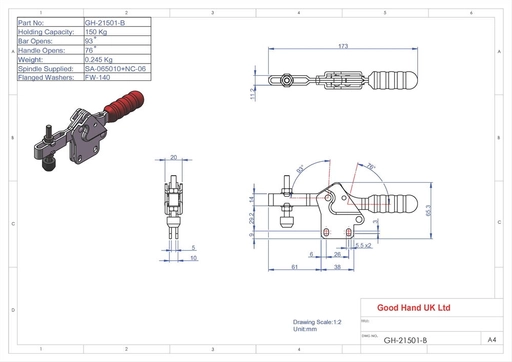

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Straight
Holding Force	101-200kg
Height	51-100mm
Total Length	151-200mm
Underarm Height	31-40mm
Arm Length	51-75mm
Spindle Size	M6

Downloads

Download STP

GH-22501-B Datasheet

Horizontal Toggle Clamp. Overall Height 65mm. Overall Length 99mm. Holding Force 150daN.

Horizontal Toggle Clamp. Overall Height 65mm. Overall Length 99mm. Holding Force 150daN.
