Item Code: GH-21383

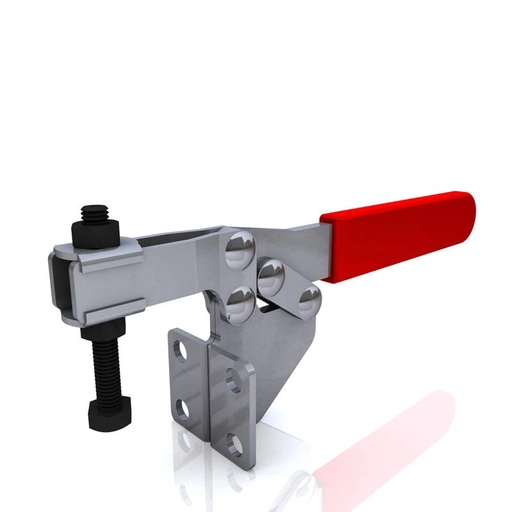

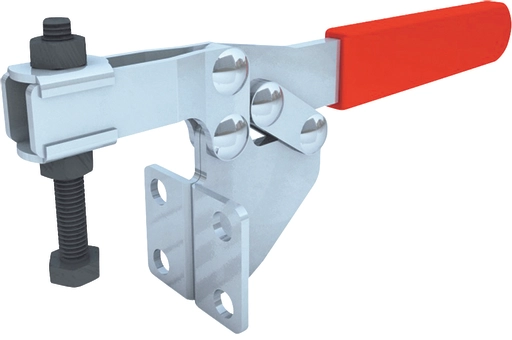

Horizontal Toggle Clamp. Overall Height 65mm. Overall Length 199mm. Holding Force 250daN.

Item Code: GH-21383

Horizontal Toggle Clamp. Overall Height 65mm. Overall Length 199mm. Holding Force 250daN.

GH-21383 Horizontal Toggle Clamp Side Mounting Size 250daN

Holding Force: 250daN
Arm Opens: 72°
Handle Opens: 72°
Weight: 0.21Kg
Spindle Supplied: SA-065010
Flanged Washers Supplied: FW-140

What's In The Bag
GH-21383 Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
FW-140 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

24 in stock

26-50mm
Adjustable
Side Mounted
101-150mm
201-300Kg
M6
151-200mm
51+mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£17.98  ea. Excl VAT £21.58  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £16.54 8%
30 - 49 £15.64 13%
50 + £14.92 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeAdjustable
Base TypeSide Mounted
Height101-150mm
Holding Force201-300Kg
Spindle SizeM6
Total Length151-200mm
Underarm Height51+mm
Download STP

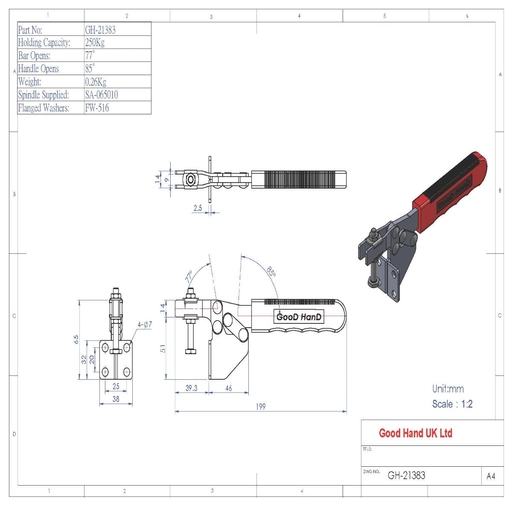

GH-21383 Datasheet
