Item Code: GH-20235

Horizontal Toggle Clamp. Overall Height 64mm. Overall Length 296mm. Holding Force 340daN.

Item Code: GH-20235

Horizontal Toggle Clamp. Overall Height 64mm. Overall Length 296mm. Holding Force 340daN.

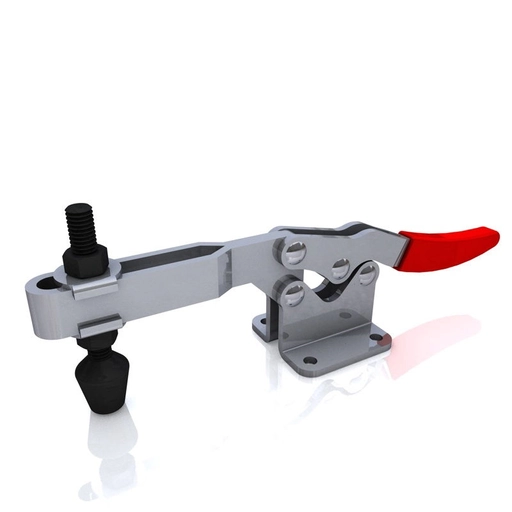

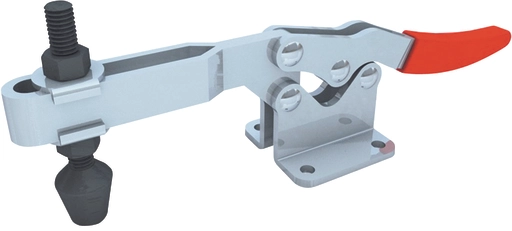

GH-20235 Horizontal Toggle Clamp Flat Base Slotted Arm Size 340daN

Holding Force: 340daN
Arm Opens: 85°
Handle Opens: 50°
Weight: 0.64Kg
Spindle Supplied: FC-108515
Flanged Washers Supplied: FW-380

What's In The Bag
GH-20235 Toggle Clamp
FC-108515 M10x85mm Neoprene Tipped Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
301-400kg
51-100mm
251+mm
41-50mm
101+mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£20.98  ea. Excl VAT £25.18  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £19.30 8%
30 - 49 £18.25 13%
50 + £17.41 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force301-400kg
Height51-100mm
Total Length251+mm
Underarm Height41-50mm
Arm Length101+mm
Spindle SizeM10
Download STP

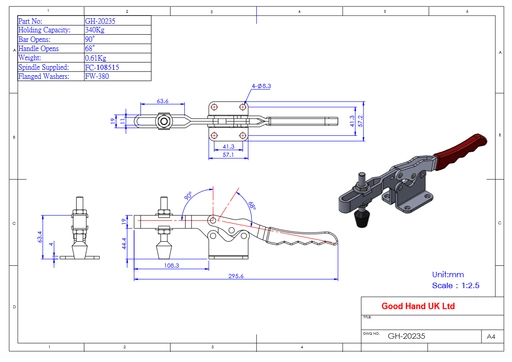

GH-20235 Datasheet
