Item Code: GH-225-DI

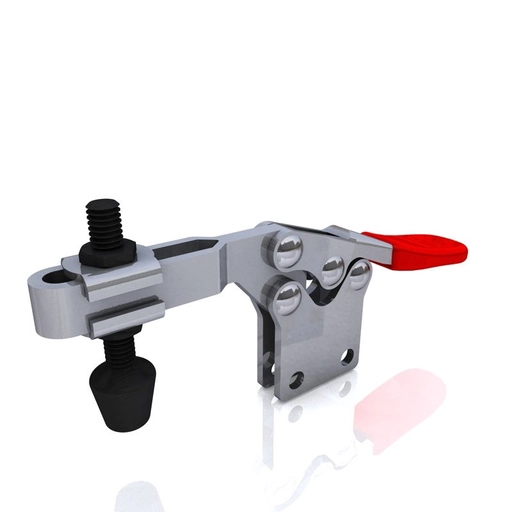

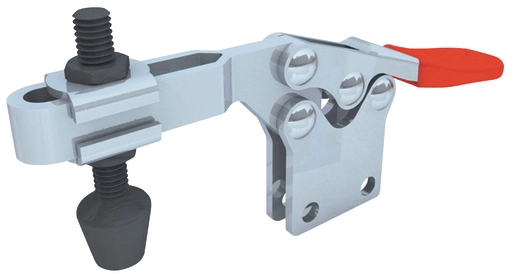

Horizontal Toggle Clamp. Overall Height 61mm. Overall Length 173mm. Holding Force 227daN.

Item Code: GH-225-DI

Horizontal Toggle Clamp. Overall Height 61mm. Overall Length 173mm. Holding Force 227daN.

GH-225-DI Horizontal Toggle Clamp Straight Base Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 90°
Handle Opens: 65°
Weight: 0.27Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-225-DI Toggle Clamp
FC-086312 M8x32mm Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Straight
201-300Kg
51-100mm
151-200mm
41-50mm
51-75mm
M8
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£16.77  ea. Excl VAT £20.12  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £15.43 8%
30 - 49 £14.59 13%
50 + £13.92 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force201-300Kg
Height51-100mm
Total Length151-200mm
Underarm Height41-50mm
Arm Length51-75mm
Spindle SizeM8
Download STP

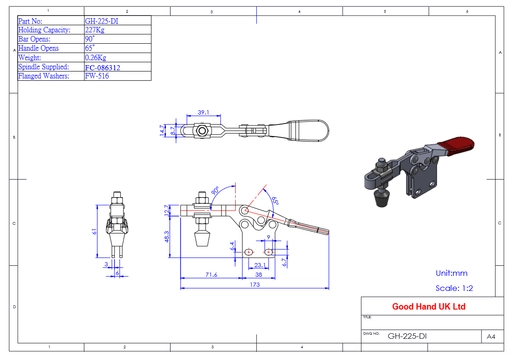

GH-225-DI Datasheet
