Item Code: GH-21384

Horizontal Toggle Clamp. Overall Height 59mm. Overall Length 270mm. Holding Force 500daN.

Item Code: GH-21384

Horizontal Toggle Clamp. Overall Height 59mm. Overall Length 270mm. Holding Force 500daN.

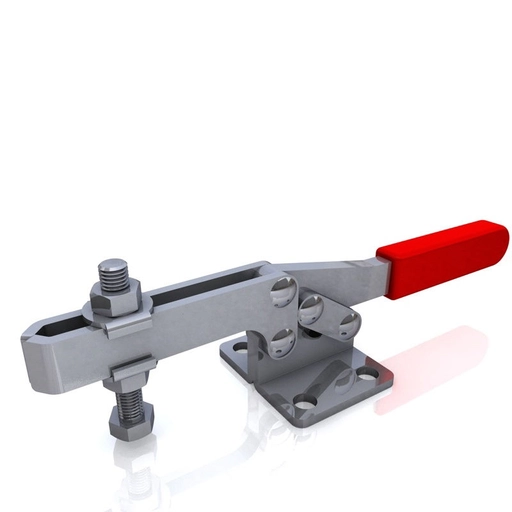

GH-21384 Horizontal Toggle Clamp Flat Base Slotted Arm Size 500daN

Holding Force: 500daN
Arm Opens: 65°
Handle Opens: 85°
Weight: 0.64Kg
Spindle Supplied: SA-106515
Flanged Washers Supplied: FW-121

What's In The Bag
GH-21384 Toggle Clamp
SA-106515 M10x65mm Spindle With Nuts
FW-121 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

2 in stock

Adjustable
Flat
401+kg
51-100mm
251+mm
31-40mm
76-100mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£29.63  ea. Excl VAT £35.56  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £27.26 8%
30 - 49 £25.78 13%
50 + £24.59 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force401+kg
Height51-100mm
Total Length251+mm
Underarm Height31-40mm
Arm Length76-100mm
Spindle SizeM10
Download STP

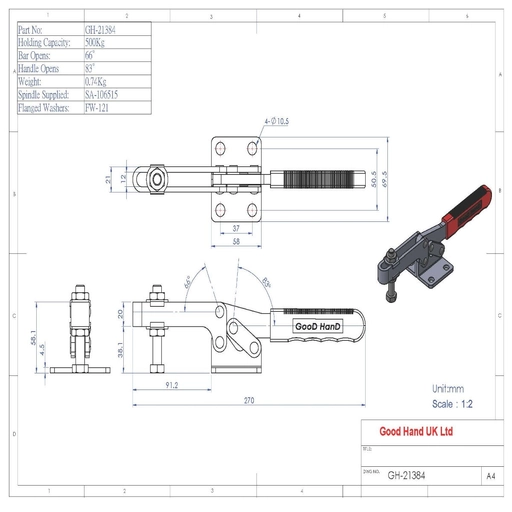

GH-21384 Datasheet
