Item Code: GH-201-BHB

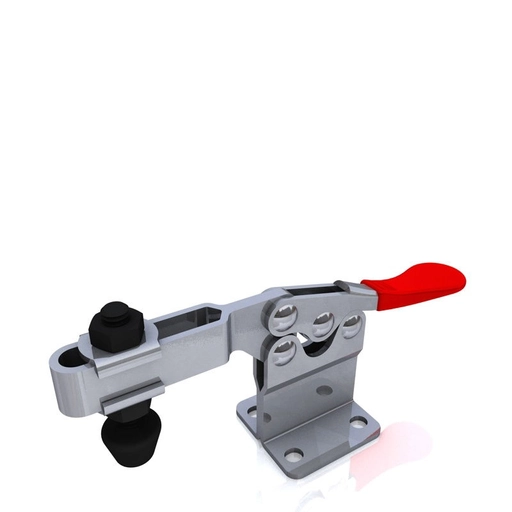

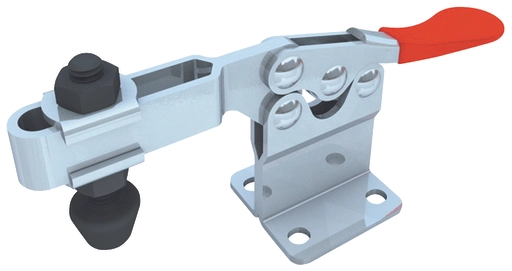

Horizontal Toggle Clamp. Overall Height 55mm. Overall Length 144mm. Holding Force 90daN.

Item Code: GH-201-BHB

Horizontal Toggle Clamp. Overall Height 55mm. Overall Length 144mm. Holding Force 90daN.

GH-201-BHB Horizontal Toggle Clamp High Flat Base Slotted Arm Size 90daN

Holding Force: 90daN
Arm Opens: 85°
Handle Opens: 60°
Weight: 0.146Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141

What's In The Bag
GH-201-BHB Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
51-100mm
101-150mm
41-50mm
51-75mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£12.29  ea. Excl VAT £14.75  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.31 8%
30 - 49 £10.69 13%
50 + £10.20 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height51-100mm
Total Length101-150mm
Underarm Height41-50mm
Arm Length51-75mm
Spindle SizeM6
Download STP
GH-201-BHB Datasheet
