Item Code: GH-203-F

Horizontal Toggle Clamp. Overall Height 54mm. Overall Length 195mm. Holding Force 227daN.

Item Code: GH-203-F

Horizontal Toggle Clamp. Overall Height 54mm. Overall Length 195mm. Holding Force 227daN.

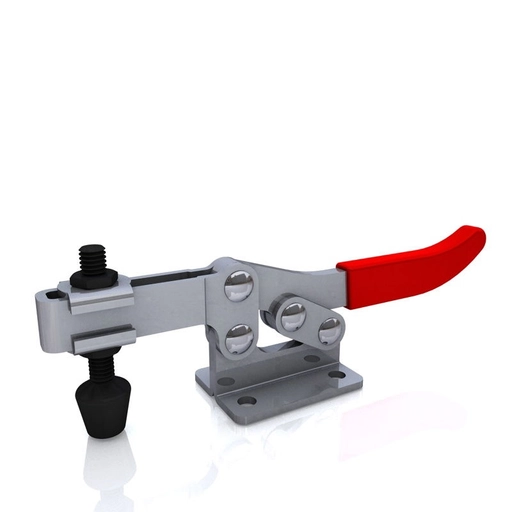

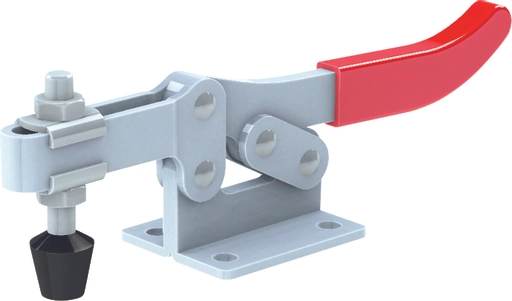

GH-203-F Horizontal Toggle Clamp Flat Base Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 85°
Handle Opens: 58°
Weight: 0.34Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516

What's In The Bag
GH-203-F Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

51-75mm
Adjustable
Flat
51-100mm
201-300Kg
M8
151-200mm
31-40mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£16.50  ea. Excl VAT £19.80  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £15.18 8%
30 - 49 £14.35 13%
50 + £13.69 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force201-300Kg
Spindle SizeM8
Total Length151-200mm
Underarm Height31-40mm
Download STP

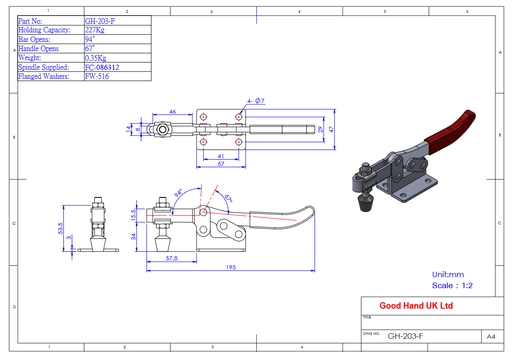

GH-203-F Datasheet
