Item Code: GH-22185

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 280mm. Holding Force 250daN.

Item Code: GH-22185

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 280mm. Holding Force 250daN.

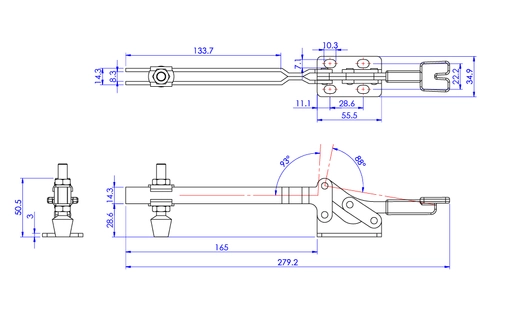

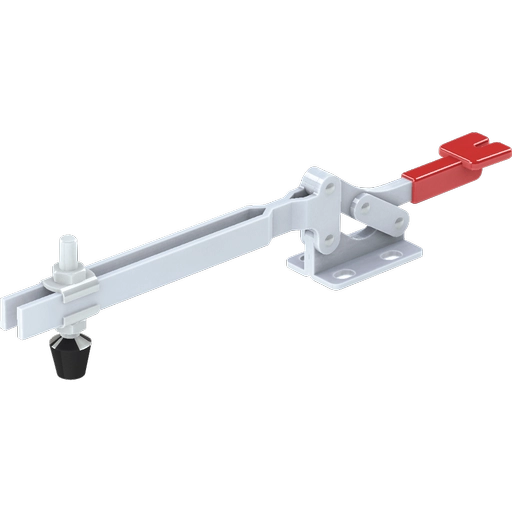

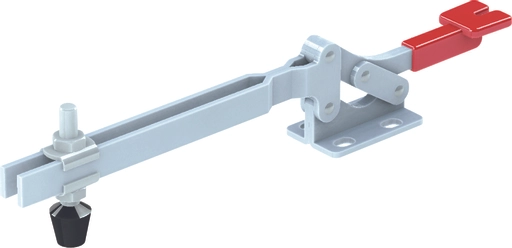

GH-22185 Horizontal Toggle Clamp Flat Base Adjustable Arm 250DaN

Holding Force: 250daN
Arm Opens: 93°
Handle Opens: 88°
Weight: 0.33Kg
Spindle Supplied: SA-086512
Flanged Washers Supplied: FW-516

What's In The Bag
GH-22185 Toggle Clamp
SA-086512 M8x65mm Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

101+mm
Adjustable
Flat
51-100mm
201-300Kg
M8
251+mm
21-30mm

£29.94  ea. Excl VAT £35.93  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length101+mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force201-300Kg
Spindle SizeM8
Total Length251+mm
Underarm Height21-30mm
Download STP
GH-22185 Datasheet
