Item Code: GH-201-BI

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 144mm. Holding Force 90daN.

Item Code: GH-201-BI

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 144mm. Holding Force 90daN.

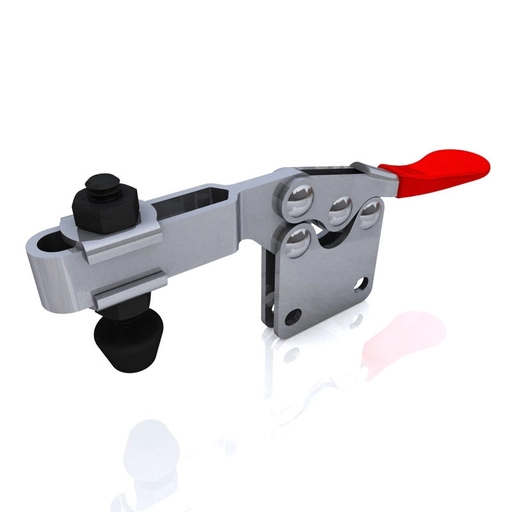

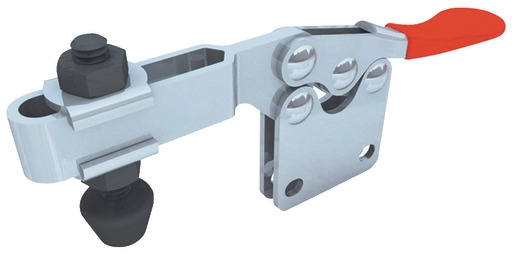

GH-201-BI Horizontal Toggle Clamp Straight Base Slotted Arm Size 90daN

Holding Force: 90daN
Arm Opens: 85°
Handle Opens: 60°
Weight: 0.13Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141

What's In The Bag
GH-201-BI Toggle Clamp
FC-064410 M6x44mm Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Straight
0-100Kg
51-100mm
101-150mm
31-40mm
51-75mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£12.27  ea. Excl VAT £14.72  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.29 8%
30 - 49 £10.67 13%
50 + £10.18 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force0-100Kg
Height51-100mm
Total Length101-150mm
Underarm Height31-40mm
Arm Length51-75mm
Spindle SizeM6
Download STP

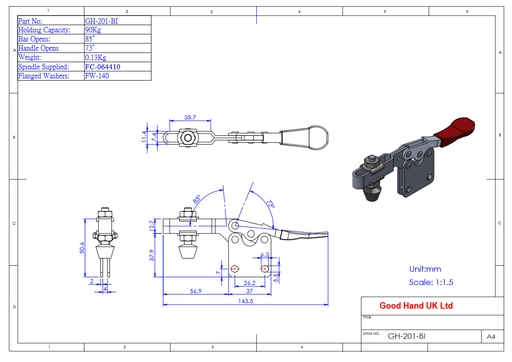

GH-201-BI Datasheet
