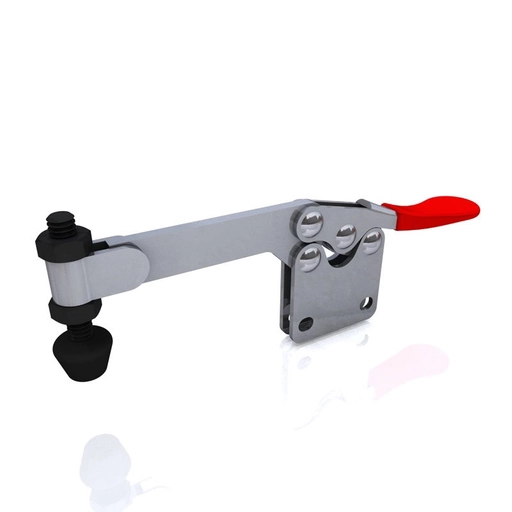

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 142mm. Holding Force 90daN.

Item Code: GH-201-BSI

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 142mm. Holding Force 90daN.

Item Code: GH-201-BSI

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 142mm. Holding Force 90daN.

GH-201-BSI Horizontal Toggle Clamp Straight Base Solid Arm Size 90daN

Holding Force: 90daN
Arm Opens: 85°
Handle Opens: 60°
Weight: 0.13Kg
Spindle Supplied: FC-064410
Bolt Retainer Supplied: BR-516

What's In The Bag
GH-201-BSI Toggle Clamp
FC-064410 M6x44mm Spindle With Nuts
BR-516 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Bolt Retainer Supplied But Not Attached, Customer To Assemble

Quick Links

50+ in stock

Arm Type: Solid

Base Type: Straight

Holding Force: 0-100Kg

Height: 51-100mm

Total Length: 101-150mm

Underarm Height: 31-40mm

Arm Length: 51-75mm

Spindle Size: M6

M6 x 20mm Spindle 1 Nut Pitch 1.0 - £1.18
M6 x 20mm Spindle 1 Nut Pitch 1.0

Qty

M6 x 25mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 25mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 40mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 40mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 50mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 44mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 44mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 50mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles

Qty

£12.46 ea. Excl VAT £14.95 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£11.46	8%
30 - 49	£10.84	13%
50 +	£10.34	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M6 x 20mm Spindle 1 Nut Pitch 1.0 - £1.18
M6 x 20mm Spindle 1 Nut Pitch 1.0

Qty

M6 x 25mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 25mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 40mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 40mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 50mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 50mm Spindle 2 Nuts Pitch 1.0

Qty

M6 x 44mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 44mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 50mm Neoprene Tipped Spindle 2 Nuts

Qty

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles

Qty

Quick Links

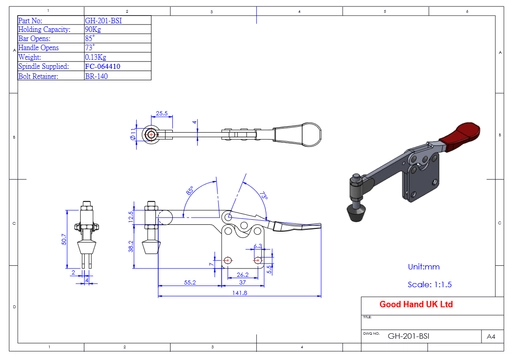

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Straight
Holding Force	0-100Kg
Height	51-100mm
Total Length	101-150mm
Underarm Height	31-40mm
Arm Length	51-75mm
Spindle Size	M6

Downloads

Download STP

GH-201-BSI Datasheet

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 142mm. Holding Force 90daN.

Horizontal Toggle Clamp. Overall Height 51mm. Overall Length 142mm. Holding Force 90daN.
