Item Code: GH-20751-B

Horizontal Toggle Clamp. Overall Height 47mm. Overall Length 62mm. Holding Force 75daN.

Item Code: GH-20751-B

Horizontal Toggle Clamp. Overall Height 47mm. Overall Length 62mm. Holding Force 75daN.

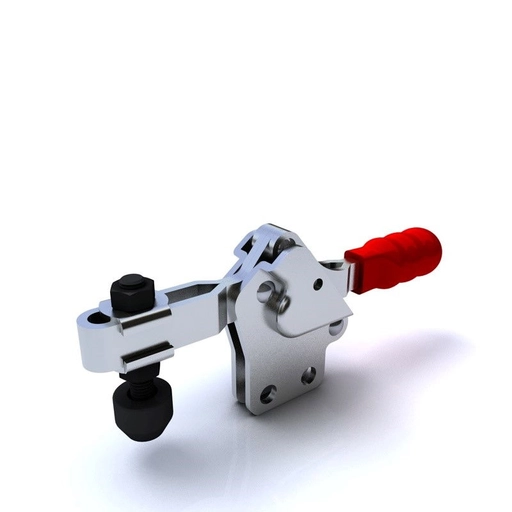

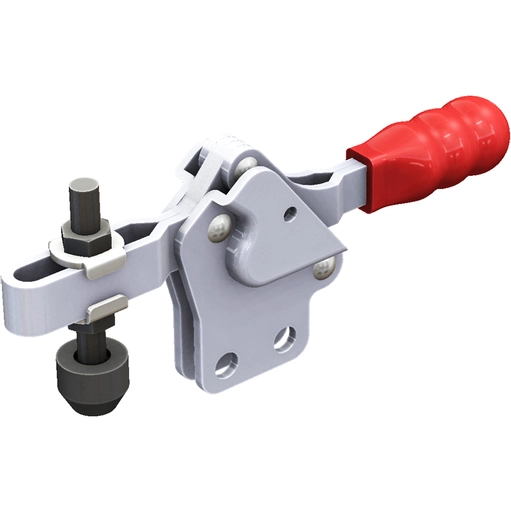

GH-20751-B Horizontal Toggle Clamp Straight Base Slotted Arm Size 75daN

Holding Force: 75daN
Arm Opens: 96°
Handle Opens: 78°
Weight: 0.091Kg
Spindle Supplied: SA-054008 + NC-05
Flanged Washer Supplied: FW-100

What's In The Bag
GH-20751-B Toggle Clamp
SA-054008 M5x40mm Spindle With Nuts
FW-100 Flanged Washers
NC-05 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

26-50mm
Adjustable
Straight
0-50mm
0-100Kg
M5
101-150mm
21-30mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£11.71  ea. Excl VAT £14.05  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.77 8%
30 - 49 £10.19 13%
50 + £9.72 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeAdjustable
Base TypeStraight
Height0-50mm
Holding Force0-100Kg
Spindle SizeM5
Total Length101-150mm
Underarm Height21-30mm
Download STP

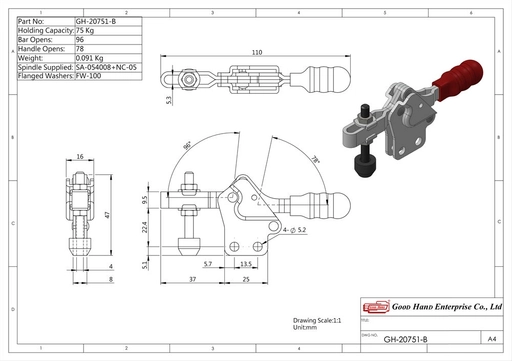

GH-20751-B Datasheet
